| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Exit Angle | |
| Connector Style | |
| Connector Type | |
| Contact Current Rating (Max) | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Flange Feature | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Packaging Quantity | |
| Pitch | |
| Shielded | |
| Termination | |
| Type | |
| Wire size |

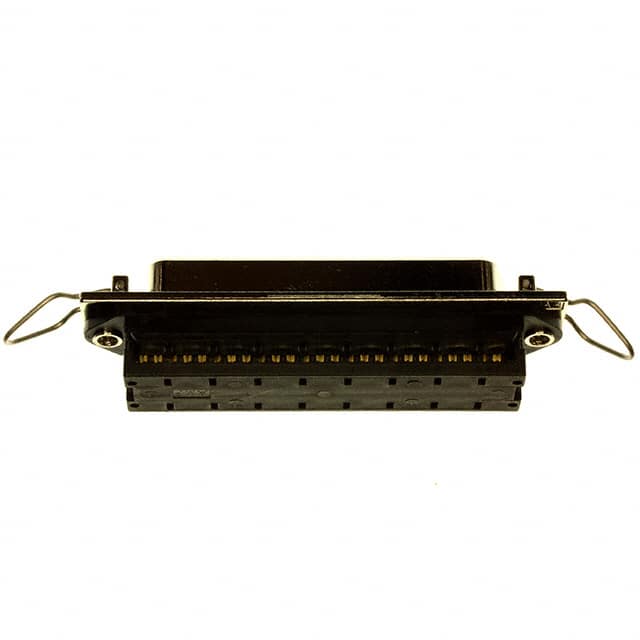

This is a TE Connectivity CHAMP Docking Connector, specifically an IDC D-Sub receptacle with 50 positions arranged in 2 rows. It is designed for cable-to-panel connections using ribbon cable or discrete wires. The connector features a 2.16 mm centerline pitch and a 90° cable exit angle.
The receptacle is panel mounted and uses IDC termination for solid wires (30-26 AWG) or stranded wires (28 AWG). Contacts are gold-plated with a thickness of 0.76 µm. The housing is made of thermoplastic with a polyphenylene oxide cover, and the shield is die-cast metal with nickel plating. The operating temperature range is -40°C to 75°C, and the maximum contact current is 1 A.
The connector is RoHS compliant (EU Directive 2011/65/EU). It is packaged in trays with a quantity of 100. The part number cross-references to DigiKey part A24219-ND.
50 positions.
2.16 mm.
1 A maximum.
Panel mount.
IDC (Insulation Displacement Connection).
Yes, with a die-cast metal shield.
-40°C to 75°C.
