| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Application Use | |
| ELV | |
| For Use With | |
| Hardware Type | |
| Length | |
| Material | |
| Mount Angle | |
| Number of Positions | |
| Panel Attachment Style | |
| Panel Mount Retention | |
| Thread Size |

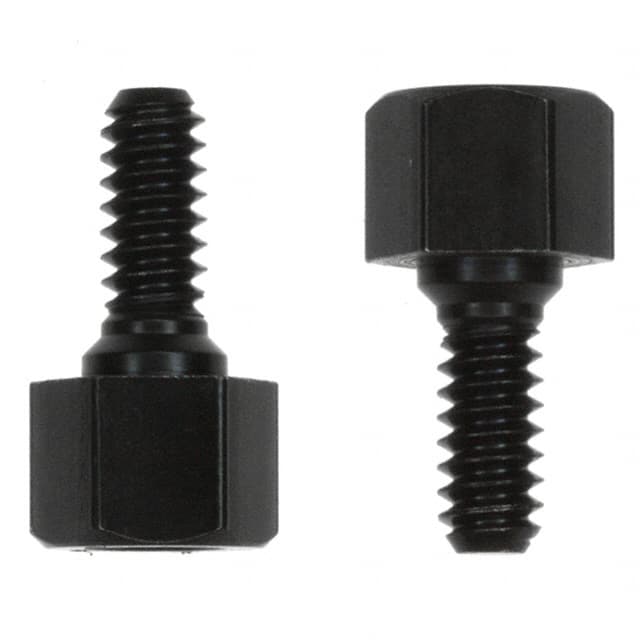

The TE Connectivity 554808-1 is a jackscrew socket accessory designed for use with CHAMP Latch D-Sub connectors. It features a metric screw lock hardware type with M3.5 socket and 6-32 screw threads, providing secure cable-to-panel attachment. The part has a length of 8.13mm (0.320 inches) and is constructed from carbon steel.
This jackscrew socket supports a right angle mount orientation and includes panel mount retention for rear mount panel attachment. It is configured for 24 positions and is intended for cable-to-panel applications. The hardware kit is used with IEEE-488 metric connectors.
The 554808-1 is RoHS and ELV compliant, making it suitable for use in environmentally sensitive applications. As a mechanical accessory, it provides reliable locking and strain relief for CHAMP connector assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.85 | $6.85 |
| 10+ | $5.82 | $5.82 |
| 25+ | $5.46 | $5.46 |
| 50+ | $5.19 | $5.19 |
| 100+ | $4.95 | $4.95 |
| 250+ | $4.64 | $4.64 |
| 500+ | $4.42 | $4.42 |
| 1,000+ | $4.21 | $4.21 |
| 2,500+ | $3.94 | $3.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The jackscrew has an M3.5 socket and a 6-32 screw thread.
The length is 8.13mm (0.320 inches).
It is made of carbon steel.
The mount angle is right angle.
It supports 24 positions.
It is used with CHAMP Latch D-Sub connectors.
