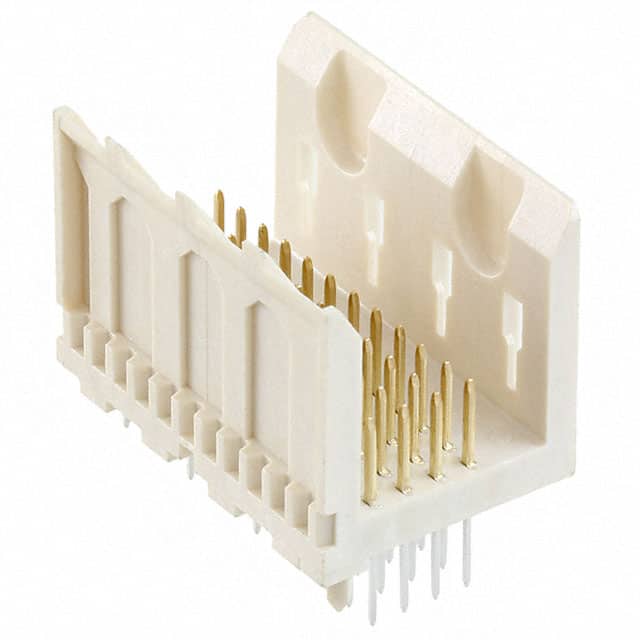

The TE Connectivity 5536513-2 is a Futurebus header connector designed for backplane applications. It features 48 positions arranged in 4 rows with a 2.00mm pitch, providing a compact and reliable interconnection solution.
The connector utilizes through hole mounting with solder termination, ensuring a secure mechanical and electrical connection to the PCB. The contacts are finished with gold, offering excellent conductivity and corrosion resistance.
This header includes a board guide feature, which aids in proper alignment during mating and helps prevent misinsertion. It is suitable for use in specialized backplane systems where high-density and reliable connections are required.
| Qty | Low | High |
|---|---|---|
| 24+ | $6.75 | $6.75 |
| 72+ | $6.64 | $6.64 |
| 168+ | $6.51 | $6.51 |
| 264+ | $6.40 | $6.40 |
| 2,016+ | $5.82 | $5.82 |
| 5,016+ | $4.85 | $4.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 48 positions, all loaded.
The pitch is 2.00mm (0.079 inches).
The connector uses through hole mounting with solder termination.
The contact finish is gold.
Yes, it includes a board guide feature.
