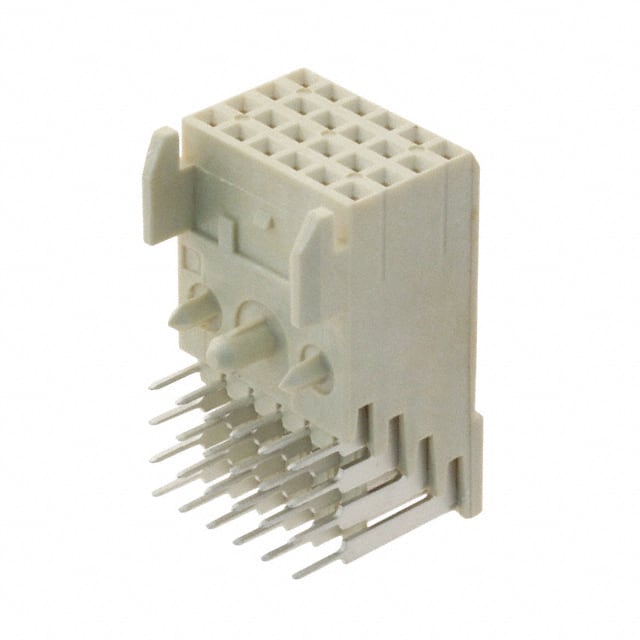

The TE Connectivity 5536507-1 is a specialized backplane connector designed for Futurebus applications. This receptacle features 24 female socket positions arranged in 4 rows with a 2.00mm pitch, providing a compact and reliable interconnection solution.
Key specifications include a gold contact finish for reliable signal integrity and corrosion resistance. The connector is designed for board edge, through hole, right angle mounting with solder termination, making it suitable for edge-mounted backplane configurations. It includes board guide and spacer features to aid in alignment and installation.
The connector is housed in a natural color housing and is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. All 24 positions are loaded, ensuring full connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.53 | $5.53 |
| 10+ | $5.03 | $5.03 |
| 25+ | $4.77 | $4.77 |
| 48+ | $4.66 | $4.66 |
| 96+ | $4.43 | $4.43 |
| 288+ | $3.88 | $3.88 |
| 528+ | $3.77 | $3.77 |
| 1,008+ | $3.21 | $3.21 |
| 2,544+ | $3.14 | $3.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5536507-1 is a receptacle with female sockets.
The 5536507-1 has 24 positions, all loaded.
The pitch is 2.00mm.
It uses board edge, through hole, right angle mounting.
The contact finish is gold.
The connector style is Futurebus.
It includes a board guide and spacer.
