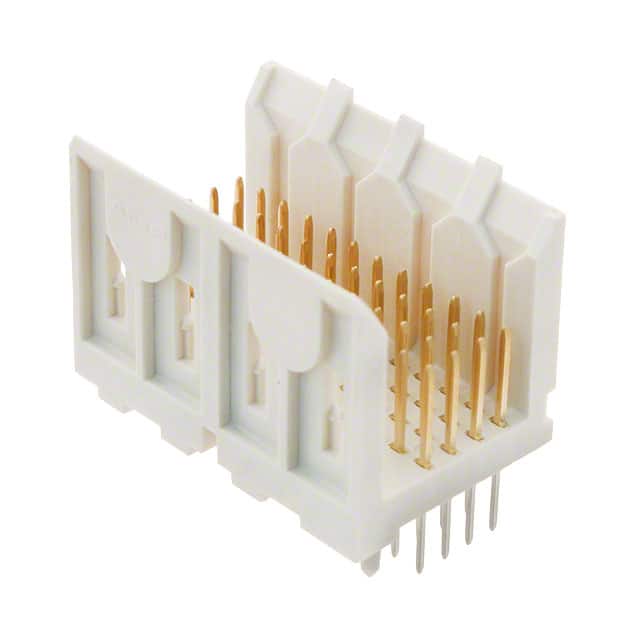

5536501-2 TE Connectivity 5536501-2 is a 48-position Futurebus header connector with male pins. It features a 2.00mm pitch, through-hole mounting, and gold contact finish.
Mfr Part #:

5536501-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5536501-2 is a 48-position Futurebus header connector with male pins. It features a 2.00mm pitch, through-hole mounting, and gold contact finish.
✓ Total Stock: 216 pcs
$ Price Range: $9.68 - $15.77

5536501-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
216 pcs
On Request
216 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5536501-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Termination
Termination Style
View Similar Products (0)

5536501-2 Description

Short technical summary and product information.

The TE Connectivity 5536501-2 is a specialized backplane header connector designed for Futurebus systems. It features 48 male pin positions arranged in 4 rows with a 2.00mm pitch, providing a compact and reliable interconnection solution for high-density backplane applications.



The connector uses through-hole mounting with solder termination for secure and durable attachment to printed circuit boards. Contacts are finished with 30 microinches of gold, ensuring excellent conductivity and corrosion resistance. A built-in board guide helps align the connector during assembly, simplifying installation and reducing the risk of pin damage.



This component is suitable for use in telecom, networking, and data communication equipment where Futurebus standard interconnections are required. Its robust mechanical design and gold-plated contacts support long-term reliability in demanding environments. No electrical ratings or temperature range are specified in the available documentation.

5536501-2 Quick Information

Product Type: Header, Male Pins (Futurebus)
Series: Futurebus
Canonical Name: TE Connectivity 5536501-2 Futurebus Header Connector
Subcategory: Futurebus Connectors

5536501-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

5536501-2 Estimated Pricing

Qty Low High
1+ $15.77 $15.77
24+ $12.60 $12.60
48+ $12.00 $12.00
72+ $11.66 $11.66
120+ $11.25 $11.25
264+ $10.64 $10.64
504+ $10.17 $10.17
1,008+ $9.68 $9.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

5536501-2 Features

  • 48-position 4-row Futurebus header connector.
  • 2.00mm pitch for space efficiency.
  • Through-hole solder termination for reliable connection.
  • Gold contact finish with 30µin thickness.
  • Board guide simplifies alignment during assembly.

5536501-2 Applications

  • Ideal for Futurebus backplane interconnection systems.
  • Suitable for telecom and networking equipment.
  • Used in high-density data communication hardware.

5536501-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 5536501-2 connector have?

48 positions, all loaded.

What is the pitch of this connector?

2.00mm.

What is the mounting type for this connector?

Through hole.

What is the contact finish?

Gold, 30 microinches (0.76µm).

Does the connector include a board guide?

Yes, it includes a board guide feature.

How many rows does the connector have?

4 rows.

What is the termination style?

Solder.
