5536275-7 by TE Connectivity AMP Connectors

5536275-7 by TE Connectivity AMP Connectors

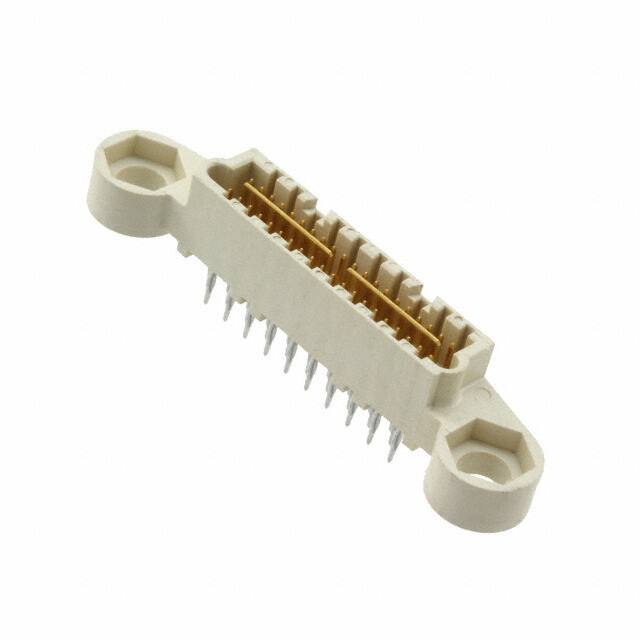

CONN HEADER VERT 40POS 1.27MM

DistiPart #
Manufacturer Name TE Connectivity AMP Connectors
Manufacturer Part #

5536275-7

Manufacturer Standard Lead Time 12 Weeks
EDA/CAD Models
Are you a distributor of this part? Register now to receive RFQ from buyers.
Download Datasheet
Other Documents
In Stock: 286 *Can dispatch immediately
Unit Price
Factory Stock: 87,99,542
Factory Lead time 12 Weeks
Minimum Order Quantity: 1

Specifications of 5536275-7

Product Attribute
Attribute Value
Select Attribute
Category
Headers, Male Pins
Manufacturer
TE Connectivity AMP Connectors
Connector Type
Plug
Contact Finish Thickness
30.0µin (0.76µm)
Contact Finish
Tin
Contact Length
0.145" (3.68mm)
Contact Material
Phosphor Bronze
Contact Shape
Square
Contact Type
Male Pin
Fastening Type
Push-Pull
Features
Ground Bus (Plane), Mounting Flange
Insulation Color
Natural
Insulation Height
0.340" (8.64mm)
Insulation Material
Thermoplastic
Mounting Type
Through Hole
Number of Positions
40
Number of Positions Loaded
All
Number of Rows
2
Pitch
0.050" (1.27mm)
Shrouding
Shrouded - 4 Wall
Style
Board to Board
Termination
Press-Fit, Solder
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-65°C ~ 125°C
Voltage Rating
30VAC
Row Spacing
0.100" (2.54mm)
View All Features
DistyParts - Get Multiple quotes in one request

Product Compliance of 5536275-7

Attributes Description
CNHTS 98765434567
USHTS 45678987654
TARIC 67898765567
ECCN 3A991

Documents of 5536275-7

Datasheet
  Datasheet

Environmental & Export Classifications of 5536275-7

Attributes Description
RoHS Status RoHS3 Compliant
Moisture Sensitivity Level (MSL) 1 Unlimited
REACH Status REACH Unaffected
ECCN 3A991
HTSUS 9876.21.0030

Additional Resources of 5536275-7

Attributes Description
Other Names RMCF 1/16S 0 R RMCF0402ZT0R00-ND RMCF1/16S0RTR-ND RMCF1/16S0RCT RMCF0402ZT0R00CT RMCF1/16S0RDKR-ND RMCF1/16S0RDKR
Standard Package 10,000
