| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2001 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Pitch | |
| Termination Style |

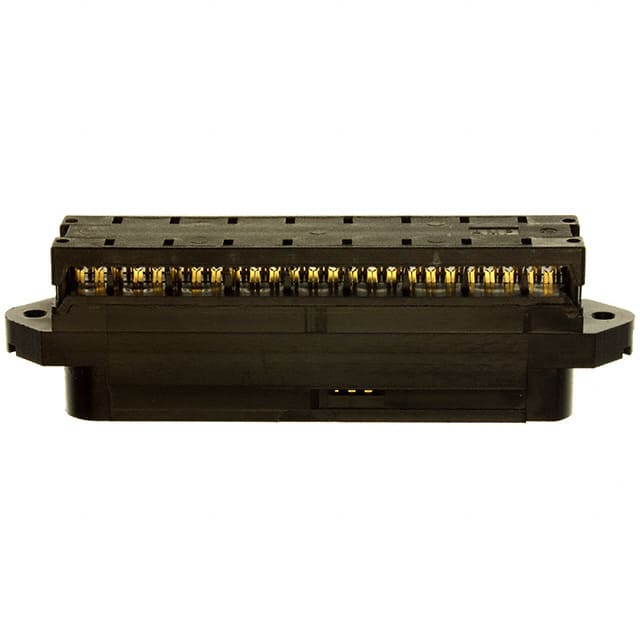

The TE Connectivity 553602-1 is a 50-position IDC (Insulation Displacement) plug connector designed for termination to round conductor flat ribbon cable. It is part of the CHAMP Latch Low-Profile series, which utilizes precision tooling to simultaneously penetrate cable insulation and engage conductors without prestripping.
This connector features center strip contacts with a contact centerline spacing of 2.16mm, while the termination end spacing is 2.54mm. The contacts are gold plated with a thickness of 0.76µm (30.0µin), providing reliable conductivity and corrosion resistance. The housing includes a flange feature with 4-40 threads for secure mounting.
The mounting type is free hanging (in-line), allowing flexible installation. A cover is latched onto the assembly to provide contact protection and cable strain relief. The connector is polarized for correct orientation and supports daisy chain configurations.
RoHS3 compliant, this connector is suitable for applications requiring a robust, high-density interconnect solution for parallel interfaces and data communication equipment.
50 positions.
The contact centerline spacing is 2.16mm.
Free hanging (in-line).
IDC (Insulation Displacement).
Gold with a thickness of 0.76µm (30.0µin).
Center strip contacts.
Yes, housing/shell with 4-40 threads.
