| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
560 pcs
|
560 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Gender | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

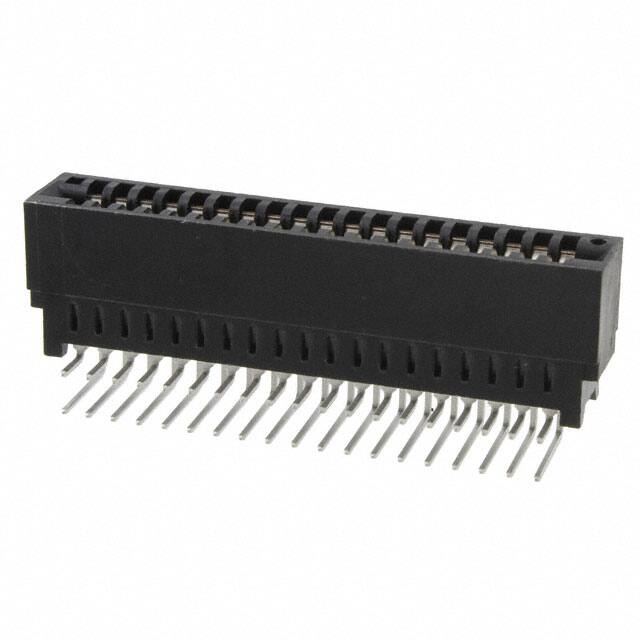

The TE Connectivity 5532600-6 is a dual female edgeboard connector designed for use with non-specified dual-edge card types. It features 38 positions arranged in 2 rows with a 0.100" (2.54mm) pitch, enabling compact PCB card edge connections. The connector is black in color and utilizes phosphor bronze contacts with a 15.0µin gold finish for reliable conductivity and corrosion resistance.
The connector is through-hole mounted with a right-angle orientation, making it suitable for perpendicular card insertion. It operates over a temperature range of -55°C to 85°C and is rated RoHS3 compliant, REACH unaffected, and MSL Level 1.
This edgeboard connector is ideal for applications requiring durable dual-readout connections in industrial, consumer, or telecommunications equipment. Its robust construction and gold-plated contacts ensure long-term reliability in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1,120+ | $8.07 | $8.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 19 positions (per the specification; the title indicates 38 total with 2 rows).
The pitch is 0.100" (2.54mm).
Through hole, right angle.
-55°C to 85°C.
Gold with 15.0µin thickness.
The specification indicates RoHS3 compliance, but this is unverified.
0.054" to 0.070" (1.37mm to 1.78mm).
