| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
432 pcs
|
432 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Gender | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination |

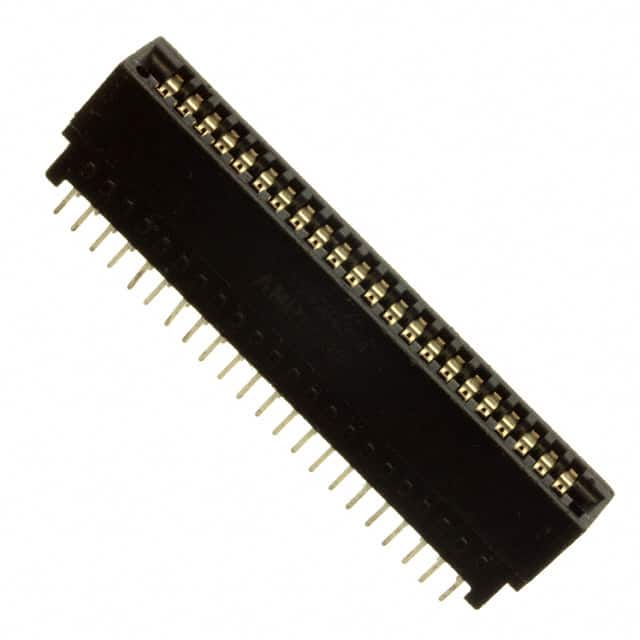

The TE Connectivity 5530843-4 is a dual readout edgeboard connector designed for reliable card edge interfacing. It features 44 positions arranged in two rows on a 0.100" (2.54mm) pitch, accommodating card thicknesses from 0.054" to 0.070" (1.37mm to 1.78mm).
The connector uses phosphor bronze contacts with 30.0µin (0.76µm) gold plating for corrosion resistance and reliable signal integrity. It is terminated via solder to a through-hole mounting interface, making it suitable for permanent PCB attachment.
Operating temperature range is -55°C to 85°C, allowing use in industrial and commercial environments. The housing is black, and the connector is rated for dual readout operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.20 | $5.20 |
| 10+ | $4.73 | $4.73 |
| 25+ | $4.48 | $4.48 |
| 50+ | $4.38 | $4.38 |
| 100+ | $4.17 | $4.17 |
| 288+ | $3.65 | $3.65 |
| 576+ | $3.54 | $3.54 |
| 1,008+ | $3.02 | $3.02 |
| 2,592+ | $2.96 | $2.96 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
44 positions arranged in 2 rows.
2.54mm (0.100").
Through hole with solder termination.
Gold, 30.0µin (0.76µm) over phosphor bronze.
-55°C to 85°C.
0.054" to 0.070" (1.37mm to 1.78mm).
