| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

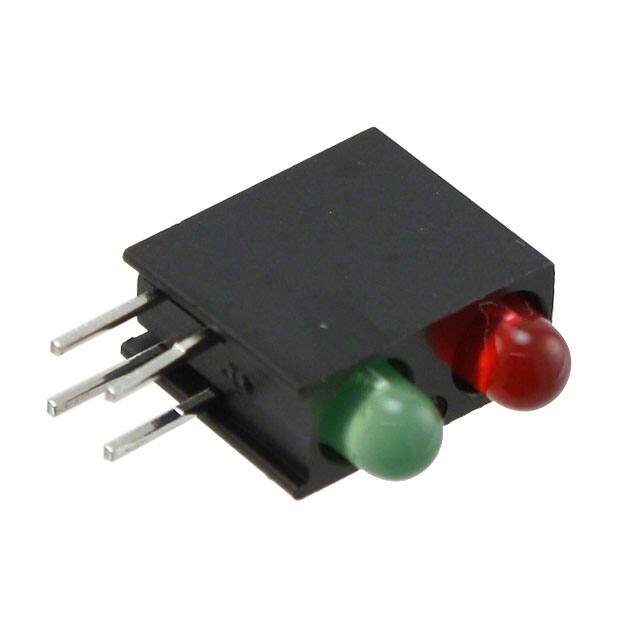

This Dialight 5530212F is a bi-level LED circuit board indicator designed for through-hole, right-angle mounting. It features two individual LEDs, one red and one green, with diffused, tinted lenses. The red LED emits at 635nm and the green LED at 565nm, both with a typical luminous intensity of 1.6mcd and a viewing angle of 60°.
Designed for applications requiring compact indicator lights on a PCB, this component operates with a typical forward current of 2mA and forward voltages of 1.7V for red and 1.9V for green. The lens size is 3mm (T-1), and the configuration is two LEDs stacked vertically.
Its through-hole, right-angle mounting makes it suitable for specific board layouts where vertical indication is needed. The diffused lens provides a wider light spread for visibility. This LED indicator is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Dialight 5530212F features one red and one green LED.
The typical luminous intensity for the LEDs in the 5530212F is 1.6mcd.
The typical forward voltage is 1.7V for the red LED and 1.9V for the green LED.
The viewing angle is 60°.
It is designed for through-hole, right-angle mounting.
This component is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
