5530212200F

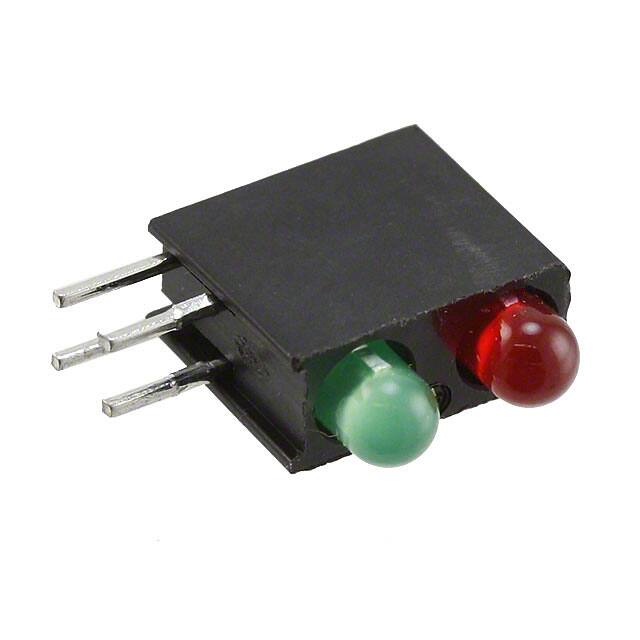

This Dialight 5530212200F is a bi-level LED circuit board indicator (CBI) designed for through-hole, right-angle mounting. It features two distinct LEDs, one red and one green, with diffused and tinted lenses. The indicator operates with a typical current of 2mA and provides a luminous intensity of 1.6mcd. The forward voltage is 1.9V for the green LED and 1.7V for the red LED. The CBI has a typical viewing angle of 60 degrees and emits light at wavelengths of 565nm for green and 635nm for red. This component is suitable for applications requiring visual status indication on a circuit board.

The CBI series from Dialight offers a range of LED indicators designed for direct mounting onto printed circuit boards. This specific model, the 5530212200F, is configured as a 2-high array, allowing for compact indicator placement. Its through-hole, right-angle mounting style facilitates easy integration into standard PCB designs. The diffused and tinted lens ensures a clear and visible light output, while the dual-color capability provides distinct visual cues. The component's electrical characteristics, including low current draw and specific voltage ratings, make it suitable for various low-power electronic systems.
