| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Luminous Intensity (Typical @ Red) | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength | |
| Wavelength Peak (Typical @ Red) |

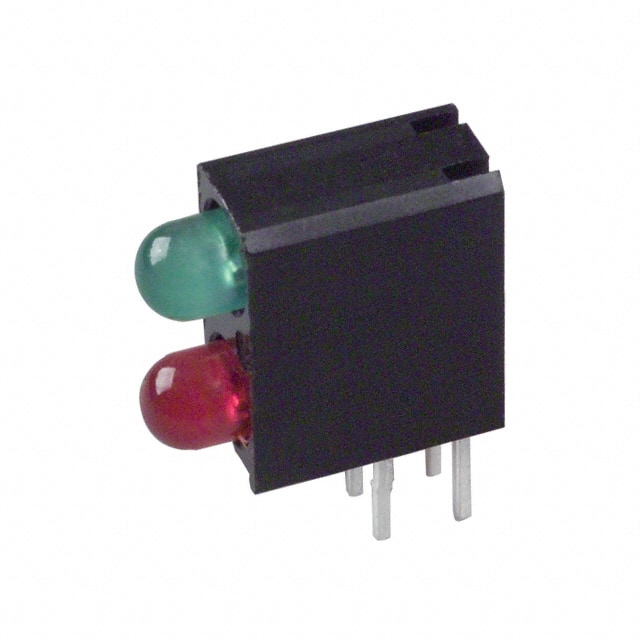

The Dialight 5530121 is a dual color Light Emitting Diode (LED) designed for circuit board indication. This component offers both green and red light emission from a single package.
Key electrical specifications include a typical forward voltage of 2.1V for green and 2V for red, with a typical current rating of 10mA. The luminous intensity is rated at 12.6mcd for green and 10mcd for red. The peak wavelengths are 565nm for green and 635nm for red, with a typical viewing angle of 60 degrees.
Mechanically, the LED features a 3mm round, dome-shaped lens that is diffused and tinted. It is designed for through-hole mounting in a right-angle configuration, making it suitable for various PCB layouts. The component is supplied in bulk packaging.
This LED is suitable for applications requiring visual indication of different states or statuses through color differentiation. Its through-hole mounting and specific lens style are designed for direct component placement on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Dialight 5530121 LED emits both green and red light.
The typical forward voltage is 2.1V for green and 2V for red.
The typical luminous intensity is 12.6mcd for green and 10mcd for red.
The typical viewing angle is 60 degrees.
The Dialight 5530121 LED uses through-hole, right-angle mounting.
