| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Orientation | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Failure Rate | |
| Flange Feature | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination | |
| Termination Style |

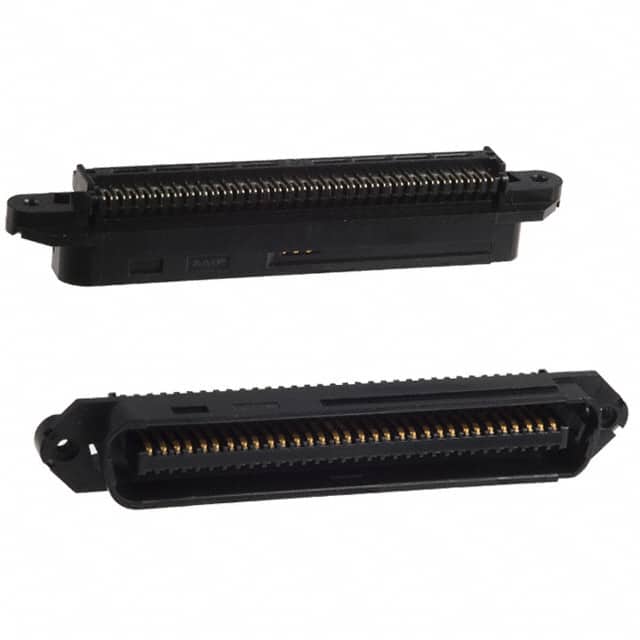

The TE Connectivity 552285-1 is a 64-position IDC connector plug from the CHAMP-LOK series, designed for cable mount (free hanging) applications. It features a 2.16mm pitch, 2 rows of contacts, and a right angle body orientation for efficient cable routing. The connector uses IDC (Insulation Displacement Connection) termination, enabling quick and reliable wire attachment without stripping.
Contacts are made of copper with a gold over nickel plating (30µin gold), ensuring low contact resistance and corrosion resistance for reliable signal transmission. The housing is molded from thermoplastic, providing durability and dimensional stability. The connector includes a flange feature with housing/shell thread size 4-40, allowing secure mating with compatible PCB-mounted CHAMP connectors.
This connector is rated for 3.5A per contact and is suitable for use in Centronics-style parallel interfaces, data communication, and industrial control systems. It is part of the CHAMP-LOK product line, known for robust design and ease of use. The component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $13.13 | $13.13 |
| 10+ | $11.16 | $11.16 |
| 25+ | $10.46 | $10.46 |
| 50+ | $9.96 | $9.96 |
| 100+ | $9.48 | $9.48 |
| 300+ | $8.78 | $8.78 |
| 500+ | $8.47 | $8.47 |
| 1,000+ | $8.06 | $8.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 64 positions arranged in 2 rows.
The pitch is 2.16mm.
The current rating is 3.5A per contact.
It is designed for free hanging (in-line) cable mount.
It uses IDC (Insulation Displacement Connection) termination.
Contact finish is gold with a thickness of 30µin (0.76µm).
The existing database indicates RoHS3 compliance, but this has not been independently verified.
