| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Flange Feature | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Termination |

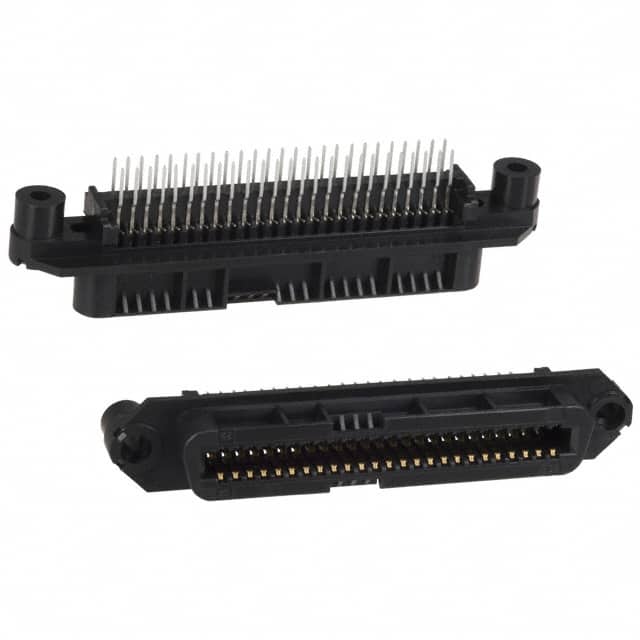

The TE Connectivity 552118-1 is a 50-position receptacle connector designed for Centronics interface applications. It features outer shroud contacts arranged in 2 rows, providing reliable signal transmission in parallel data communication systems. The connector is mounted via through-hole technology and terminated with solder, ensuring a secure mechanical and electrical connection to the PCB.
The contacts are finished with gold plating of 30 microinches (0.76µm), offering excellent corrosion resistance and low contact resistance for long-term reliability. A board-side flange feature aids in proper alignment during assembly. This connector is suitable for use in industrial equipment, printers, and other devices requiring a robust Centronics-style interface.
Packaging is through-hole, and the connector is designed for vertical orientation. No electrical ratings are specified in the available data; refer to the manufacturer for current and voltage limits. Compliance with RoHS and REACH is claimed but unverified.
| Qty | Low | High |
|---|---|---|
| 480+ | $4.78 | $4.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 positions.
Through hole.
Gold, 30µin (0.76µm).
2 rows.
Yes, board side flange.
Solder.
Outer shroud contacts.
