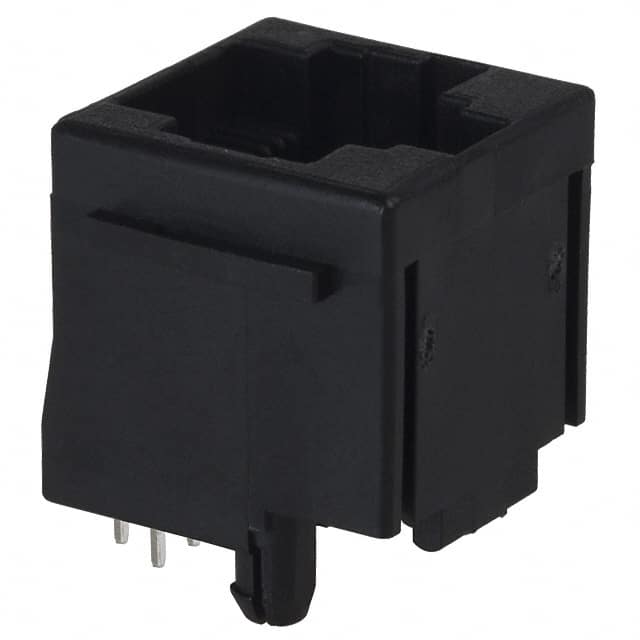

The TE Connectivity 5520259-4 is a single-port, 8-position 8-contact (8p8c) RJ45 modular jack designed for vertical through-hole mounting. It is unshielded and features a black PBT polyester housing with board lock and panel stops for secure PCB attachment. The connector is rated for Category 3 applications and supports a maximum contact current rating of 1.5A. Operating temperature range is -40°C to 85°C. The contact material is phosphor bronze with gold plating (1.27µm) on the mating area and tin plating on the termination area. The connector has a height of 16.51mm and a recommended PCB thickness of 1.57mm. Termination post and tail length is 3.8mm, and centerline pitch is 1.02mm. The UL flammability rating is 94V-0. Packaging is in box and tray with a quantity of 128 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.08 | $2.08 |
| 10+ | $1.77 | $1.77 |
| 25+ | $1.66 | $1.66 |
| 50+ | $1.58 | $1.58 |
| 114+ | $1.49 | $1.49 |
| 342+ | $1.38 | $1.38 |
| 570+ | $1.33 | $1.33 |
| 1,026+ | $1.28 | $1.28 |
| 2,508+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions (8p8c, RJ45, Ethernet).
1.02 mm.
1.5 A (also listed as 0.2 A per contact).
Through Hole.
-40°C to 85°C.
Phosphor Bronze with Gold plating on mating area.
UL 94V-0.
