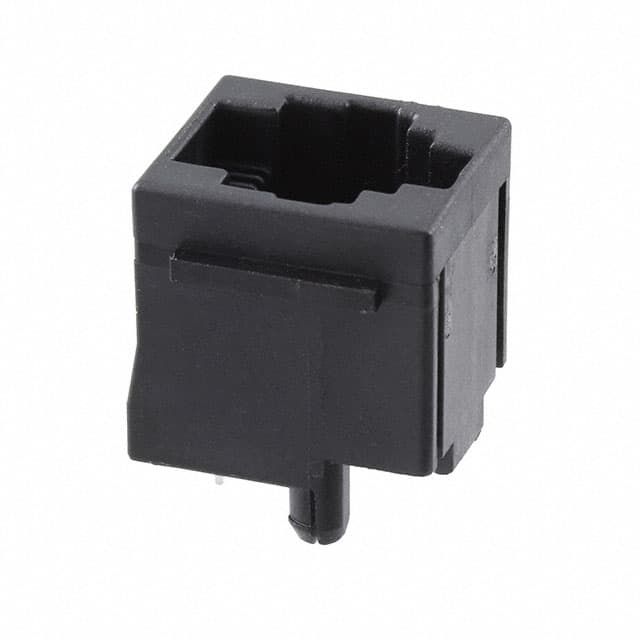

The TE Connectivity 5520258-3 is a modular connector jack from the OEG Miniature Relay PCF series, designed for RJ25 interfaces. This connector features a single port with a 1x1 port matrix and a standard profile. It has 6 positions with all 6 contacts loaded (6P6C), making it suitable for RJ11, RJ12, RJ14, and RJ25 applications.
Mechanically, the jack is vertically oriented for PCB mounting with through-hole solder termination. It also supports panel mounting via integrated panel stops. The housing is black PBT material rated UL 94V-0 for flammability. Contacts are made of phosphor bronze with a gold plating on the mating area and tin on the termination posts, ensuring reliable signal transmission.
Electrically, the connector is unshielded and has a maximum contact current rating of 0.2 A (signal condition) and 1.5 A (condition unspecified). It is designed for signal circuit applications and meets Category 3 performance requirements. The operating temperature range is -40°C to 85°C, suitable for a variety of environments.
The 5520258-3 is packaged in boxes and trays with a standard quantity of 144 pieces. It is RoHS compliant and lead free by inference. This connector is ideal for telecommunications, networking, and data communication equipment requiring a reliable 6-position modular interface.
