| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

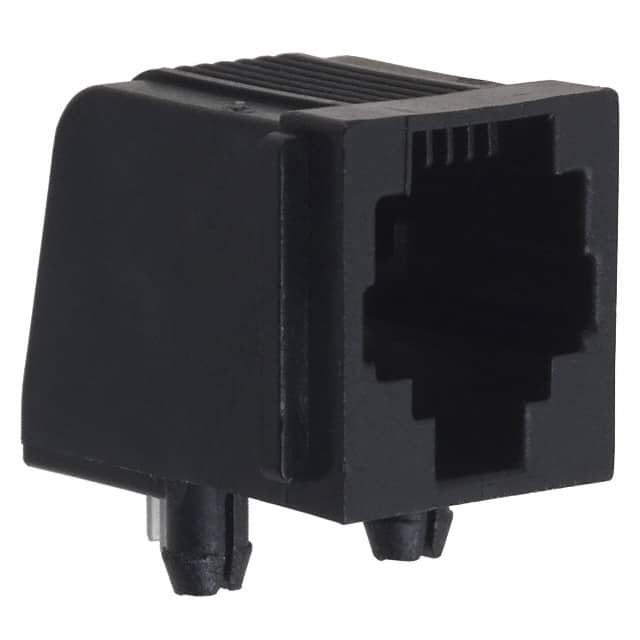

The TE Connectivity 5520250-2 is a single-port modular connector jack designed for 6P4C (RJ11/RJ14) applications. It features a right-angle (90°) orientation and through-hole solder termination for secure PCB mounting. The connector is unshielded and includes board lock and panel stop features for mechanical stability.
Contact material is phosphor bronze with a gold finish, ensuring reliable electrical connections over repeated mating cycles. The tab direction is down, and the jack is rated Category 3 (Cat3), suitable for voice and low-speed data transmission up to 16 MHz.
This connector does not contain an LED indicator. It is RoHS3 compliant and has an MSL rating of 1 (unlimited), with REACH unaffected status (all compliance data is unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.21 | $2.21 |
| 10+ | $1.88 | $1.88 |
| 25+ | $1.76 | $1.76 |
| 50+ | $1.67 | $1.67 |
| 132+ | $1.56 | $1.56 |
| 264+ | $1.49 | $1.49 |
| 528+ | $1.42 | $1.42 |
| 1,056+ | $1.35 | $1.35 |
| 2,508+ | $1.27 | $1.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a modular jack with 6 positions and 4 contacts (6P4C), compatible with RJ11 and RJ14 plugs.
It is a through-hole mount component with a right-angle (90°) orientation and solder termination.
No, it is unshielded.
The contacts are made of phosphor bronze with a gold finish.
It is rated Category 3 (Cat3), suitable for voice and data transmission up to 16 MHz.
