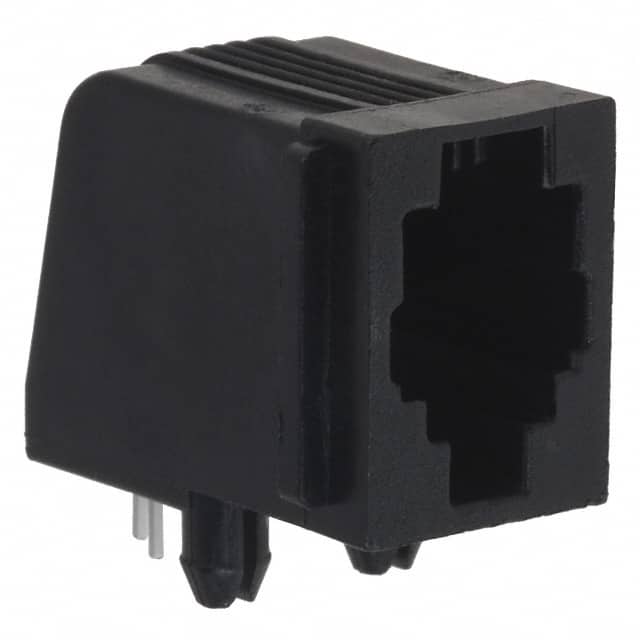

5520249-2 TE Connectivity 5520249-2 is a modular jack with 4p4c (RJ9/RJ10/RJ22) configuration, right angle orientation, through hole mounting, and unshielded design. Features gold plated phosphor bronze contacts and board lock/panel stops.
Mfr Part #:

5520249-2

Available from 4 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 5520249-2 is a modular jack with 4p4c (RJ9/RJ10/RJ22) configuration, right angle orientation, through hole mounting, and unshielded design. Features gold plated phosphor bronze contacts and board lock/panel stops.
✓ Total Stock: 6,379 pcs
$ Price Range: $1.60 - $2.78

5520249-2 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5520249-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

5520249-2 Description

Short technical summary and product information.

The TE Connectivity 5520249-2 is a modular connector jack designed for 4p4c (RJ9, RJ10, RJ22) configurations. It features a right angle (90°) orientation and through hole mounting, making it suitable for PCB applications where space is constrained. The connector is unshielded and terminated via solder contacts.



The contact material is phosphor bronze with a gold finish, ensuring reliable electrical connections. The jack includes board lock and panel stops for secure mounting. It is rated for Category 3 (Cat3) performance. The tab direction is down, and the connector does not include an LED indicator.



This modular jack is commonly used in telecommunications and data networking equipment, particularly for telephone handset cords and similar applications requiring a 4-conductor connection. The through hole mounting provides robust mechanical attachment to the PCB.

5520249-2 Quick Information

Product Type: Modular Connector Jack
Canonical Name: TE Connectivity 5520249-2 Modular Jack 4p4c Right Angle Through Hole Unshielded
Subcategory: 4p4c Modular Jack (RJ9/RJ10/RJ22)

5520249-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

5520249-2 Estimated Pricing

Qty Low High
1+ $2.78 $2.78
10+ $2.36 $2.36
25+ $2.21 $2.21
50+ $2.11 $2.11
150+ $1.95 $1.95
300+ $1.86 $1.86
600+ $1.77 $1.77
1,050+ $1.70 $1.70
2,550+ $1.60 $1.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

5520249-2 Features

  • 4p4c (RJ9/RJ10/RJ22) modular jack configuration.
  • Right angle (90°) through hole mounting.
  • Unshielded design with gold plated phosphor bronze contacts.
  • Includes board lock and panel stops for secure mounting.
  • Rated for Category 3 (Cat3) performance.

5520249-2 Applications

  • Ideal for telephone handset cord connections.
  • Used in telecommunications equipment requiring 4-conductor jacks.
  • Suitable for Cat3-rated networking applications.
  • Can be used in data communication devices with space constraints.

5520249-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type and configuration?

Jack, 4p4c (RJ9, RJ10, RJ22).

What is the mounting type?

Through Hole, 90° Angle (Right).

Is the connector shielded?

No, it is unshielded.

What is the contact material and finish?

Phosphor Bronze with Gold finish.

What are the key features?

Board Lock and Panel Stops.

What is the performance rating?

Cat3.

Does it include an LED?

No, it does not contain an LED.
