| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

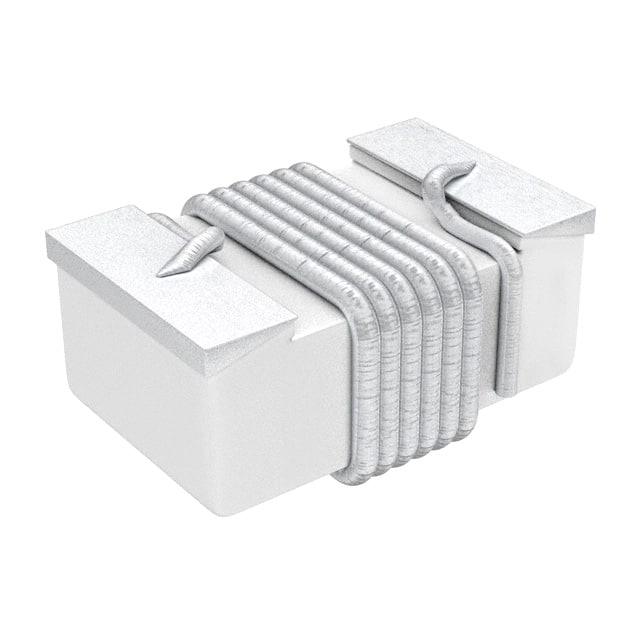

The 55082213400 is a fixed inductor manufactured by Sumida Corporation. It features an inductance of 220 nH with a tolerance of ±5%. The component is rated for a maximum DC current of 240 mA and has a maximum DC resistance of 550 mOhm. It offers a minimum Q factor of 35 at 100 MHz and a self-resonant frequency of 950 MHz. The inductor uses a wirewound construction on a ceramic core and is unshielded. It is designed for surface mount assembly in an 0805 (2012 Metric) package with dimensions of 2.20 mm x 1.40 mm x 1.42 mm. The operating temperature range is -55°C to 125°C. This inductor is suitable for RF applications requiring high Q and stable inductance at high frequencies. The component is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.64 | $0.64 |
| 10+ | $0.55 | $0.55 |
| 25+ | $0.50 | $0.50 |
| 100+ | $0.41 | $0.41 |
| 250+ | $0.38 | $0.38 |
| 500+ | $0.33 | $0.33 |
| 1,000+ | $0.29 | $0.29 |
| 3,000+ | $0.29 | $0.29 |
| 6,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
220 nH.
240 mA.
550 mOhm maximum.
950 MHz minimum.
0805 (2012 Metric).
-55°C to 125°C.
No, it is unshielded.
