| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
170 pcs
|
170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Storage Temperature | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

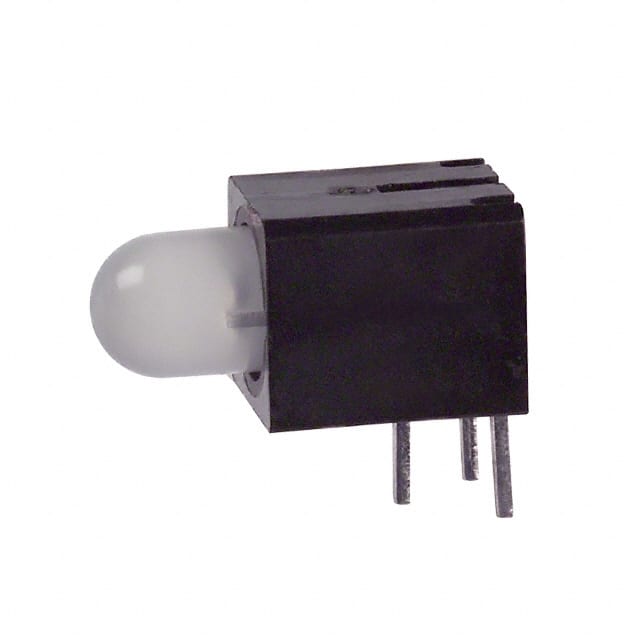

The Dialight 5503505 is a bi-color LED circuit board indicator designed for applications requiring visual status indication. This component features both Red and Green light emission from a single package, offering versatility in signaling.
Key electrical specifications include a typical forward voltage of 2.1V for Red and 2.3V for Green, with a typical forward current of 10mA. The peak wavelengths are 635nm for Red and 565nm for Green. Luminous intensity is rated at 5mcd for Red and 8mcd for Green at 10mA. The viewing angle is 65 degrees.
Mechanically, the LED has a 5mm (T-1 3/4) clear lens with a round, domed top. It is designed for through-hole mounting with a right-angle orientation, facilitating integration onto printed circuit boards. The common cathode configuration simplifies circuit design.
This LED operates within a temperature range of -20°C to 85°C and has a maximum power dissipation of 135mW. It is suitable for various indicator applications where bi-color functionality is beneficial.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Dialight 5503505 indicator produces Red and Green light.
The typical forward voltage is 2.1V for Red and 2.3V for Green.
The typical forward current is 10mA.
The viewing angle is 65 degrees.
The Dialight 5503505 LED is mounted through hole with a right angle orientation.
The operating temperature range is -20°C to 85°C.
