| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Inductance | |
| Industrial Grade | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Termination Style | |
| Voltage |

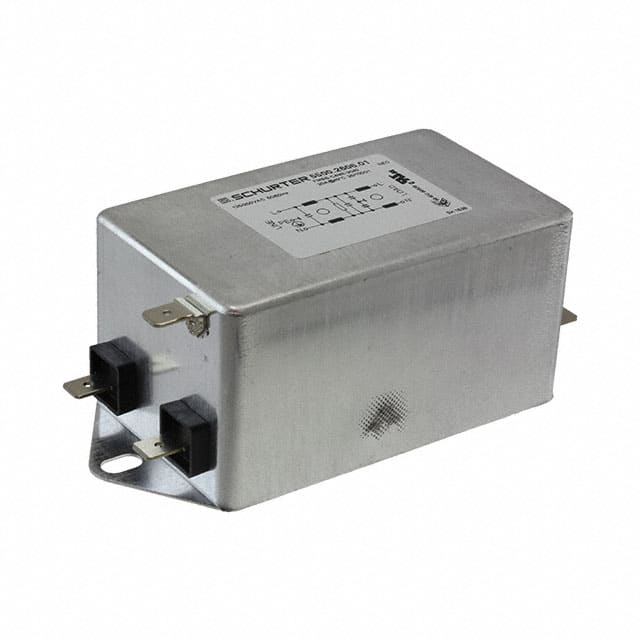

The Schurter 5500.2606.01 is a single phase, two stage power line filter from the FMBB NEO series. It is rated for a nominal current of 20 A and a nominal voltage of 125 V or 250 V. The filter is designed for chassis mounting and uses quick connect terminals for easy installation.
This filter is suitable for use in inverters and power drive systems. It has an operating temperature range of -25 °C to 100 °C. The component carries cURus, ENEC, and VDE safety approvals.
| Qty | Low | High |
|---|---|---|
| 1+ | $71.51 | $71.51 |
| 10+ | $59.41 | $59.41 |
| 25+ | $57.23 | $57.23 |
| 100+ | $54.37 | $54.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 20 A.
The voltage rating is 125 V and 250 V.
It uses chassis mount with quick connect termination.
The operating temperature range is -25 °C to 100 °C.
It has cURus, ENEC, and VDE approvals.
It is a two stage filter.
It is a single phase filter.
