| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Climatic Category | |
| Configuration | |
| Current | |
| Dielectric Strength (Minimum @ Between L-N, 2 sec) | |
| Dielectric Strength (Minimum @ Between L/N-PE, 2 sec) | |
| Filter Type | |
| Frequency | |
| Housing Material | |
| Inductance | |
| Industrial Grade | |
| Lead Style | |
| Leakage Current (Maximum @ 250 V / 60 Hz) | |
| MTBF | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Protection Class | |
| Tape & Reel | |
| Terminal | |
| Termination Style | |
| Voltage | |
| rated_current (Nominal @ Ta 40 °C / 125 VAC; 60 Hz) | |
| rated_current (Nominal @ Ta 40 °C, 250 VAC, 50 Hz) |

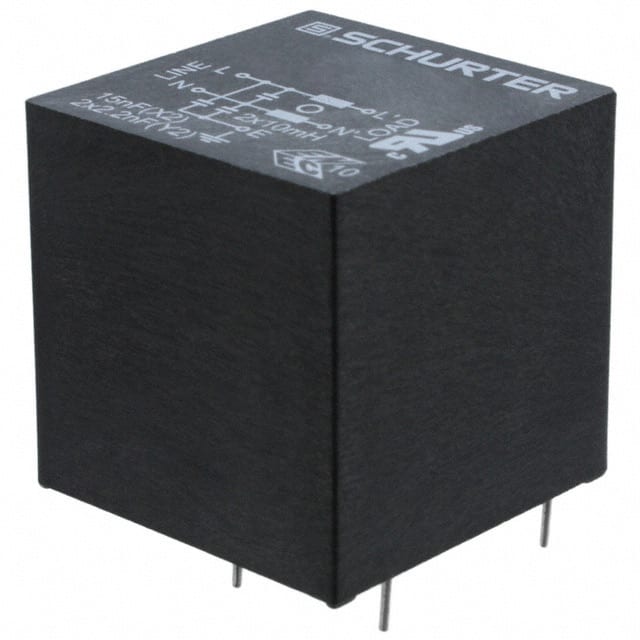

The Schurter 5500.2001 is a single-phase, single-stage EMI line filter designed for PCB mounting. It is rated for 1 A at 125 VAC or 250 VAC, 50/60 Hz, and provides standard attenuation for general-purpose applications. The filter features a 10 mH inductance and a maximum leakage current of 0.25 mA at 250 V/60 Hz in the standard version; medical versions with lower leakage are available in the series. Dielectric strength is greater than 1.7 kVDC between line and neutral and greater than 2.7 kVDC between line/neutral and protective earth.
Rated for operation from -25°C to 85°C, the filter carries a climatic category of 25/085/21 per IEC 60068-1. It is suitable for protection class I equipment according to IEC 61140. The thermoplastic housing is rated UL 94V-0 and the tin-plated PC pins allow through-hole soldering. Approvals include cURus, ENEC, and VDE, and the component is RoHS3 compliant, REACH unaffected, and has an MSL of 1. MTBF exceeds 200,000 hours per MIL-HB-217 F.
Its compact, cost-saving plastic housing makes it suitable for standard applications where protection against mains interference is required. Applications include general-purpose power supply and appliance filtering in equipment per IEC/UL 62368-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.30 | $11.30 |
| 5+ | $10.01 | $10.01 |
| 10+ | $8.51 | $8.51 |
| 50+ | $7.74 | $7.74 |
| 100+ | $7.10 | $7.10 |
| 250+ | $6.95 | $6.95 |
| 1,000+ | $6.59 | $6.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The filter operates from -25°C to 85°C.
It is rated for 125 VAC and 250 VAC at 50/60 Hz.
Yes, it is listed as RoHS3 compliant.
The rated current is 1 A at both IEC (40°C / 250 VAC) and UL/CSA (40°C / 125 VAC) conditions.
It carries cURus, ENEC, and VDE approvals.
Standard version leakage current is less than 0.25 mA at 250 V/60 Hz.
It is designed for through-hole PCB mounting with tin-plated PC pins.
