| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Failure Rate | |
| Industrial Grade | |
| Logic Type | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Circuits | |
| Number of Inputs | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Supply |
The 54LS26DMQB is a NAND Gate integrated circuit manufactured by National Semiconductor. It belongs to the LS Series and is designed for logic applications. This component features 4 independent circuits, each with 2 inputs, making it suitable for various digital logic functions.
The device operates within a supply voltage range of 4.5V to 5.5V and has a quiescent current of 4.4 mA maximum. The output current capability is 1 mA. The operating temperature range for the 54LS26DMQB is -55°C to 125°C, indicating its suitability for demanding environmental conditions.

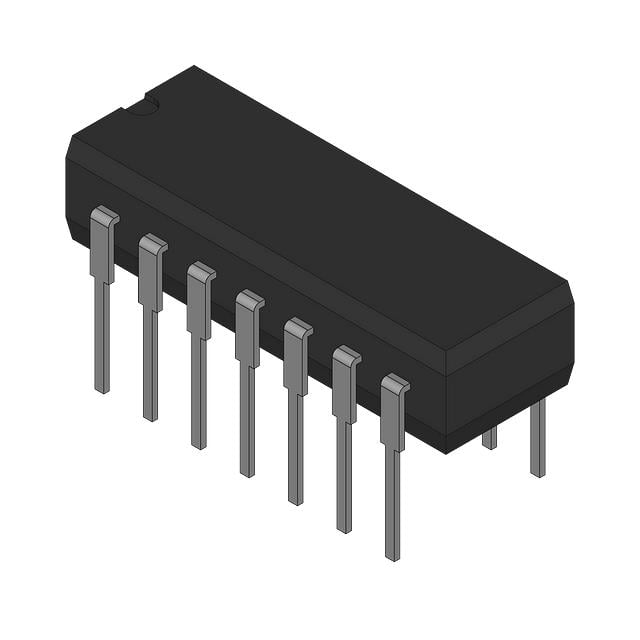

Packaged in a 14-CERDIP format, the 54LS26DMQB is designed for through-hole mounting. Its robust construction and wide operating temperature range make it a reliable choice for industrial and military applications where performance and durability are critical.
Environmental compliance includes RoHS3 compliance and REACH unaffected status. The Moisture Sensitivity Level (MSL) is rated as 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the 54LS26DMQB is 4.5V to 5.5V.
The operating temperature range is -55°C to 125°C.
The 54LS26DMQB is available in a 14-CERDIP package.
The 54LS26DMQB is designed for through-hole mounting.
The RoHS status is ROHS3 Compliant.
The MSL is 1 (Unlimited).
