| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Bushing Thread | |
| Lead Style | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Power (Watts) | |
| Resistance (Ohms) | |
| Resistive Material | |
| Rotation | |
| Storage Temperature | |
| Tape & Reel | |
| Taper | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance |

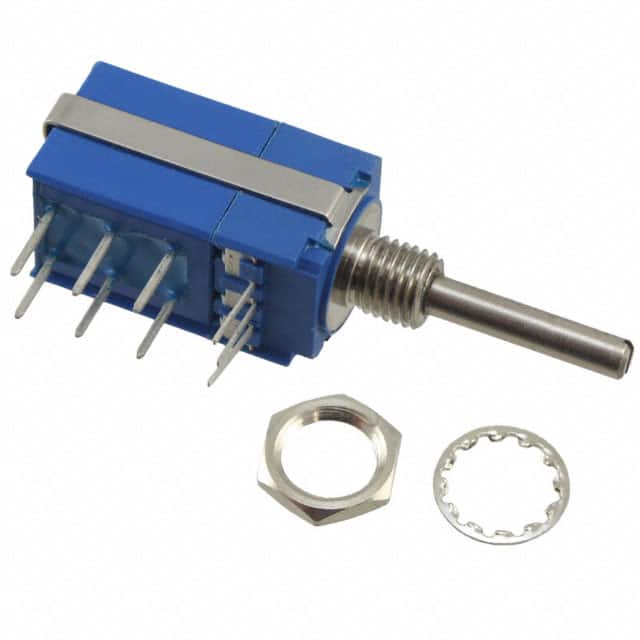

This Bourns 54CAD-E28-B13/P50L is a single-gang rotary potentiometer with a resistance of 5k Ohms and a linear taper. It is rated for 0.5W of power at 70°C and has a tolerance of ±20%. The potentiometer features a panel mount design with a 1/4-32 bushing thread and PC pin termination.
With a 1-turn design and a 290° rotation, this component includes a slotted actuator and a push-pull DPDT switch. The resistive material is conductive plastic, and it has a temperature coefficient of ±1000ppm/°C. The actuator diameter is 0.125" (3.18mm) and the length is 0.875" (22.23mm).
Applications for this type of potentiometer include test and measurement equipment, communications equipment, medical diagnostic equipment, and professional audio equipment. It is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the Bourns 54CAD-E28-B13/P50L potentiometer is 5k Ohms.
The power rating for this potentiometer is 0.5W at 70°C.
The 54CAD-E28-B13/P50L features a linear taper.
Yes, the Bourns 54CAD-E28-B13/P50L has a built-in push-pull DPDT switch.
Yes, the Bourns 54CAD-E28-B13/P50L is RoHS3 Compliant.
