| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
288 pcs
|
288 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

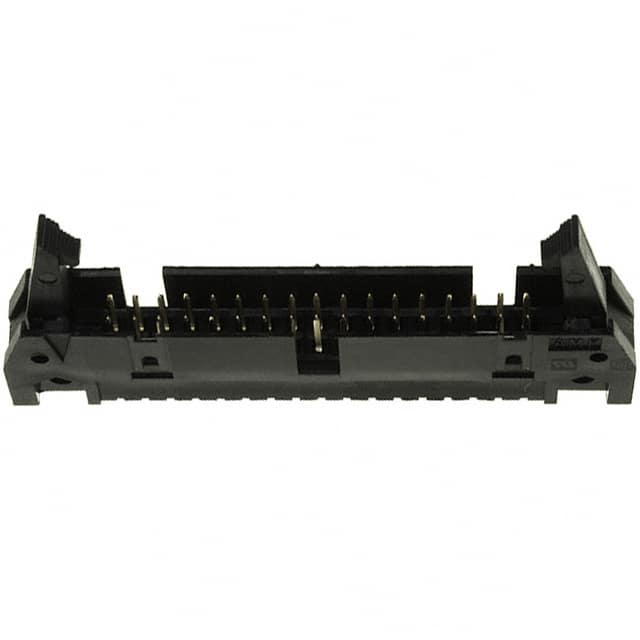

The TE Connectivity 5499922-8 is a 34-position male pin header designed for board-to-cable/wire applications. It features a 2.54mm pitch and a shrouded 4-wall design with long latch lock/eject hooks for secure mating. The through-hole mounting with solder termination ensures reliable connections on PCBs. Contacts are tin-plated with 15.0µin thickness, rated for 1A current and 250VAC voltage. Operating temperature ranges from -65°C to 105°C. The insulator is black with UL94 V-0 flammability rating and includes a keying slot and mounting flange for alignment and fastening. All 34 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.95 | $8.95 |
| 24+ | $7.15 | $7.15 |
| 120+ | $6.38 | $6.38 |
| 504+ | $5.77 | $5.77 |
| 1,008+ | $5.49 | $5.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
34 positions.
2.54mm (0.100 in).
1A.
250VAC.
Through hole.
-65°C to 105°C.
Shrouded - 4 Wall.
