| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
684 pcs
|
684 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

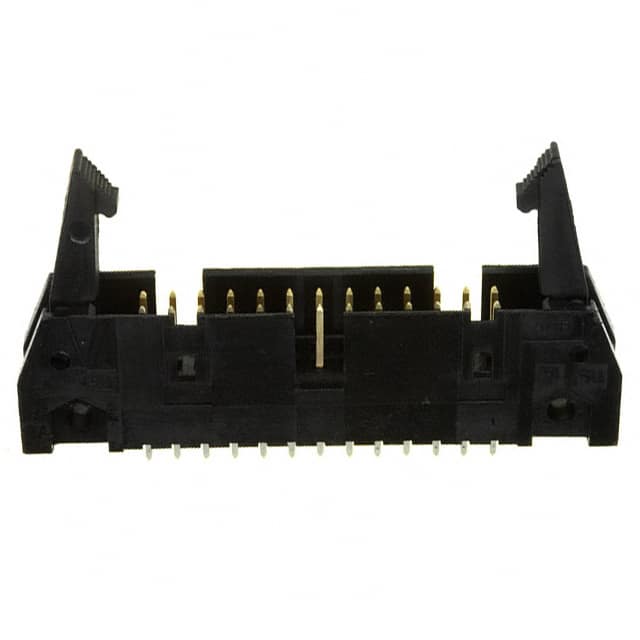

This TE Connectivity 5499922-6 is a 26-position shrouded header connector with a 2.54mm (0.100 inch) pitch arranged in 2 rows. It features through-hole mounting with solder termination, making it suitable for permanent board attachment.
Electrical ratings include 1A current capacity and 250VAC voltage rating. The operating temperature range spans -65°C to 105°C, with a UL94 V-0 flammability rating for the black insulation housing.
The connector is fully shrouded (4-wall) with a latch lock/eject hooks fastening type for secure mating. Contact length is 6.10mm (0.240 inch) and overall contact length is 16.23mm (0.639 inch). Insulation height is 13.94mm (0.549 inch). Square tin-plated contacts have a 15.0µin (0.38µm) finish thickness. Additional features include a keying slot and mounting flange for polarization and board retention.
Designed for board-to-cable/wire applications, this header provides reliable connectivity in industrial and electronic systems requiring secure, positive locking.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.80 | $6.80 |
| 36+ | $5.27 | $5.27 |
| 108+ | $4.88 | $4.88 |
| 504+ | $4.38 | $4.38 |
| 1,008+ | $4.17 | $4.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions.
2.54mm (0.100 inch).
1A.
250VAC.
Through hole.
-65°C to 105°C.
Tin with 15.0µin (0.38µm) thickness.
