| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,200 pcs
|
5200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
432 pcs
|
432 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
29 pcs
|
29 pcs | On Request | 1 | 24 | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

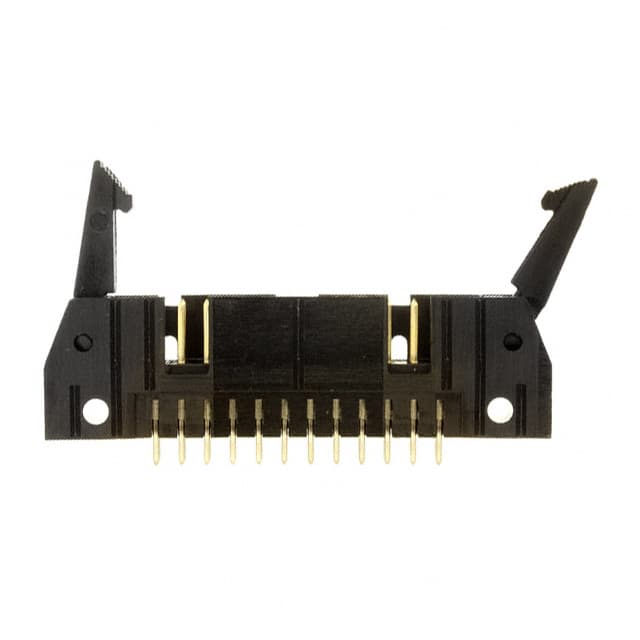

The TE Connectivity 5499922-5 is a 24-position, 2-row, shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm pitch and 0.100" row spacing, with all positions loaded. The header is fully shrouded with a 4-wall design and includes a latch lock/eject hook fastening system, keying slot, and mounting flange for secure mating.
The contacts are square male pins with a tin finish (15.0µin) providing good solderability. The overall contact length is 0.639" (16.23mm) with a mating pin length of 6.10mm. The black insulation has a height of 13.94mm. This header is rated for 1A current and 250VAC, with an operating temperature range of -65°C to 105°C. The housing material meets UL94 V-0 flammability rating.
Designed for through-hole mounting with solder termination, this connector is suitable for industrial and commercial applications requiring a robust, polarized connection. The mounting flange provides additional mechanical stability.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.70 | $5.70 |
| 36+ | $4.43 | $4.43 |
| 108+ | $4.10 | $4.10 |
| 504+ | $3.67 | $3.67 |
| 1,008+ | $3.50 | $3.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions, all loaded, in 2 rows.
2.54mm (0.100").
1A at 250VAC.
Through-hole with solder termination.
Yes, fully shrouded with 4 walls.
-65°C to 105°C.
UL94 V-0.
