| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
924 pcs
|
924 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

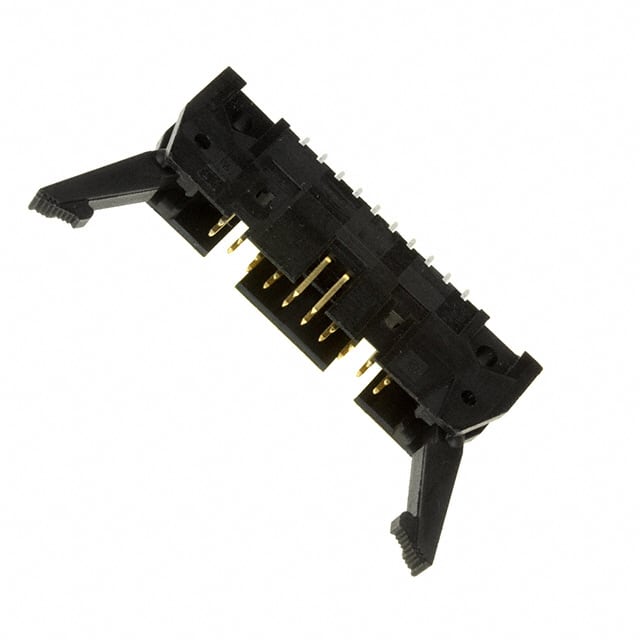

The TE Connectivity 5499922-4 is a shrouded header with 20 positions arranged in two rows on a 2.54mm pitch. It features through hole mounting with solder termination, making it suitable for board-to-cable/wire applications. The header has a 4-wall shroud with latch lock/eject hooks for secure connection. The male pins are square-shaped with a tin finish (15.0µin thickness) and the insulation is black, rated UL94 V-0. The operating temperature range is -65°C to 105°C. This header is rated for 1A current and 250VAC voltage. It includes a keying slot and mounting flange for alignment and secure attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.46 | $5.46 |
| 42+ | $4.19 | $4.19 |
| 126+ | $3.88 | $3.88 |
| 504+ | $3.52 | $3.52 |
| 1,008+ | $3.35 | $3.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
1A.
250VAC.
Through hole.
-65°C to 105°C.
Tin with 15.0µin thickness.
