| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
335 pcs
|
335 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

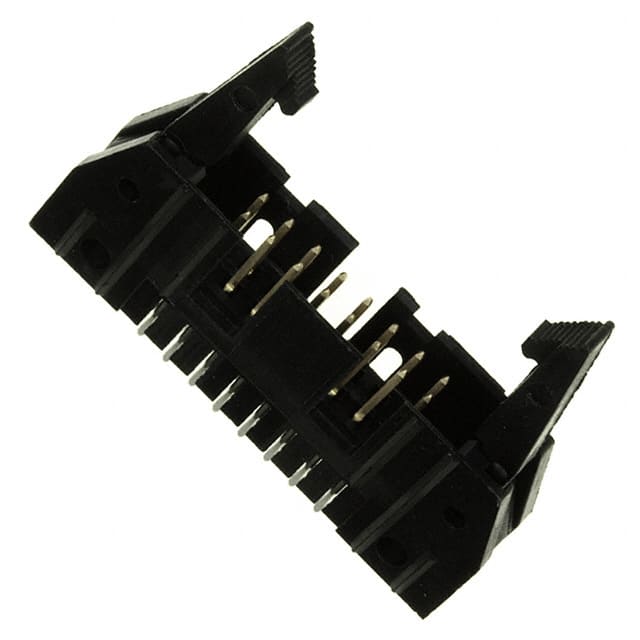

The TE Connectivity 5499922-3 is a 16-position, 2-row header with a 2.54mm (0.100") pitch, designed for through-hole mounting with solder termination. It features a shrouded 4-wall design with long latch lock/eject hooks for secure mating and easy unmating. The contacts are male pins with a square shape, finished with tin (15µin thickness). The insulation is black, with a height of 13.94mm (0.549") and an overall contact length of 16.23mm (0.639").
Rated for 1A at 250VAC, this header operates over a temperature range of -65°C to 105°C. The housing material has a UL94 V-0 flammability rating. Additional features include a keying slot and mounting flange for alignment and secure attachment. The style is board to cable/wire, making it suitable for wire-to-board interconnection applications.
Packaging is through-hole with a lead spacing of 2.54mm. The part is RoHS3 compliant (unverified) and REACH unaffected (unverified). Moisture sensitivity level is MSL 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.41 | $4.41 |
| 42+ | $3.39 | $3.39 |
| 126+ | $3.14 | $3.14 |
| 504+ | $2.84 | $2.84 |
| 1,008+ | $2.71 | $2.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions in 2 rows.
2.54mm (0.100").
1A.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
Tin with 15µin thickness.
