| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,152 pcs
|
1152 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS 2 | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Length - Mating | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| EU ELV | |
| Fastening Type | |
| Features | |
| Halogen Content | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

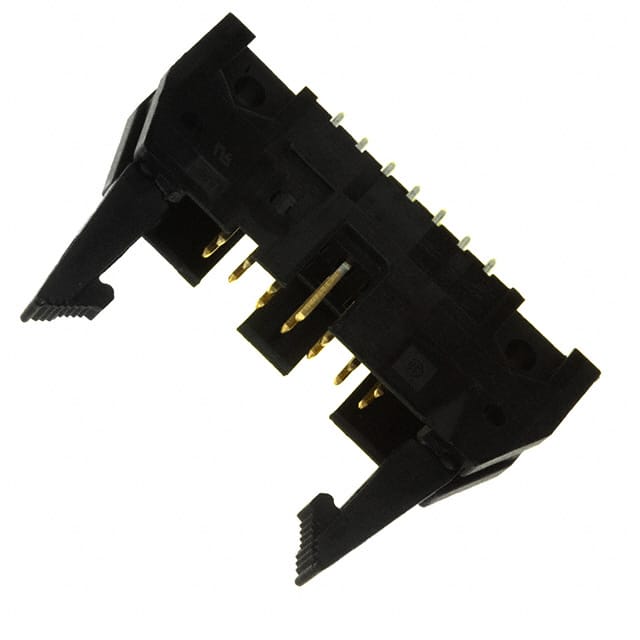

The TE Connectivity 5499922-2 is a 14-position, 2-row header connector with a 2.54mm pitch, designed for board-to-cable/wire applications. It features a shrouded 4-wall design with latch lock/eject hooks for secure mating and easy unmating. The connector uses through hole mounting with solder termination, and the square pins have a tin finish with 0.38µm thickness. The insulation is black UL94 V-0 rated material. Electrical ratings are 1A current and 250VAC voltage, with an operating temperature range of -65°C to 105°C. This connector is suitable for industrial control, consumer electronics, and data communication equipment where reliable connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.25 | $5.25 |
| 48+ | $3.99 | $3.99 |
| 144+ | $3.70 | $3.70 |
| 528+ | $3.37 | $3.37 |
| 1,008+ | $3.22 | $3.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions in 2 rows.
2.54mm (0.100").
1A.
250VAC.
Through hole.
-65°C to 105°C.
Yes, it is RoHS compliant.
