| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,830 pcs
|
7830 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

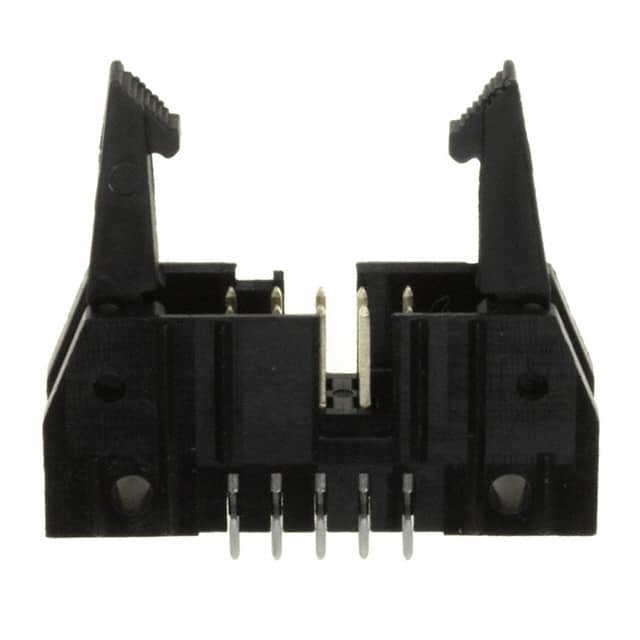

The TE Connectivity 5499922-1 is a 10-position, 2-row (all positions loaded) shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch with matching row spacing, through hole mounting, and solder termination. The male pins are square with a tin contact finish of 0.38µm thickness. The header is shielded on all four sides and includes a latch lock/eject hook fastening system for secure mating with corresponding receptacles. Additional design features include a keying slot and mounting flange for alignment and mechanical retention.
With a current rating of 1A and voltage rating of 250VAC, this connector is suitable for low-power signal and power interconnections. The operating temperature range spans -65°C to 105°C, and the insulator is made of material rated UL94 V-0 for flammability. The overall contact length is 16.23mm, with a contact length of 6.10mm and an insulation height of 13.94mm. This header is RoHS3 and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.81 | $2.81 |
| 54+ | $2.12 | $2.12 |
| 108+ | $2.02 | $2.02 |
| 540+ | $1.80 | $1.80 |
| 1,026+ | $1.72 | $1.72 |
| 5,022+ | $1.54 | $1.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions, 2 rows, all positions loaded.
2.54mm pitch with 2.54mm row spacing.
1A.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
Yes, it features latch lock/eject hooks for secure mating.
