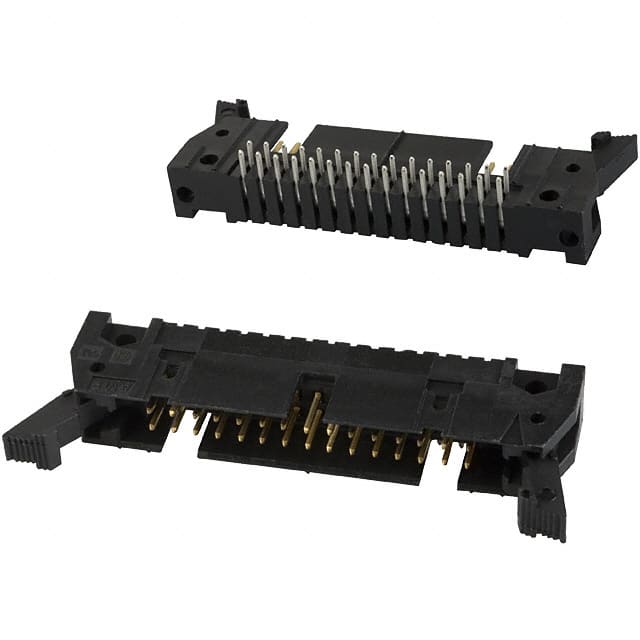

The TE Connectivity 5499913-7 is a 30-position, 2-row rectangular connector header with a 2.54mm (0.100") pitch. It is a right angle, through-hole mount component with solder termination, making it suitable for board-to-cable/wire applications. The header features a shrouded 4-wall design with latch lock/eject hooks for secure mating.
The contacts are made of brass with a tin finish and a thickness of 15.0µin (0.38µm). The insulator is black, rated UL94 V-0, and includes a keying slot and mounting flange for alignment and mechanical stability. The insulation height is 8.00mm (0.315").
Electrically, the header is rated for 1A per contact and 250VAC. It operates over a temperature range of -65°C to 105°C. The square contacts have a length of 6.10mm (0.240").
This header is intended for use in applications requiring a reliable, polarized connection between a printed circuit board and a cable or wire assembly. The right angle orientation allows for low-profile connections parallel to the board surface.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.73 | $10.73 |
| 10+ | $10.53 | $10.53 |
| 25+ | $8.17 | $8.17 |
| 40+ | $8.03 | $8.03 |
| 120+ | $7.65 | $7.65 |
| 280+ | $7.28 | $7.28 |
| 520+ | $7.09 | $7.09 |
| 1,000+ | $6.58 | $6.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 30 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100"), with the same row spacing.
The current rating is 1A per contact.
The voltage rating is 250VAC.
It is a through-hole, right angle mount with solder termination.
The operating temperature range is -65°C to 105°C.
The insulator material is rated UL94 V-0.
