| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

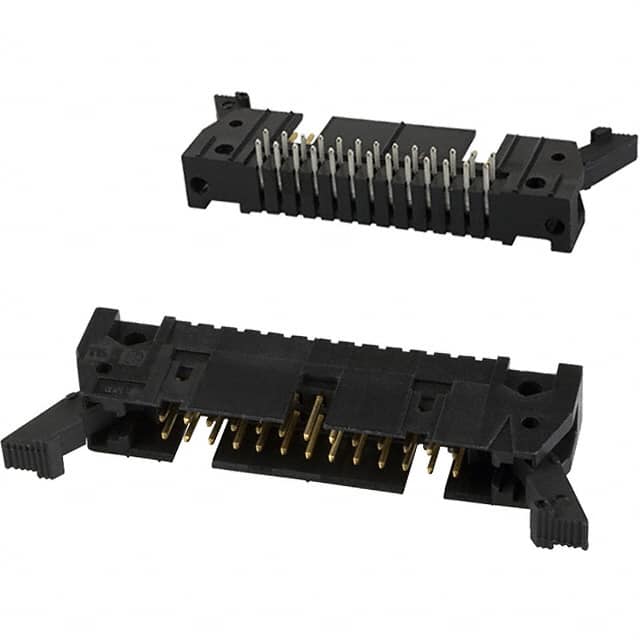

The TE Connectivity 5499913-6 is a 26-position, 2-row male pin header with a 2.54mm pitch. It features a right-angle through-hole mounting style with solder termination. The header is shrouded with a 4-wall design, offering latch lock/eject hooks for secure mating. It also includes a keying slot and mounting flange for alignment and stability. The contacts are made of brass with tin plating (15.0µin thickness) and have a square shape. The insulation height is 8.00mm and the contact length is 6.10mm. The housing is black PBT or nylon with a UL94 V-0 flammability rating. Electrically, the header is rated for 1A per contact and 250VAC, with an operating temperature range of -65°C to 105°C. This component is designed for board-to-cable/wire applications, providing a reliable interconnection in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.05 | $9.05 |
| 40+ | $6.98 | $6.98 |
| 120+ | $6.46 | $6.46 |
| 520+ | $5.82 | $5.82 |
| 1,000+ | $5.56 | $5.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 26 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
The current rating is 1A per contact.
The voltage rating is 250VAC.
The mounting type is through hole, right angle.
The operating temperature range is -65°C to 105°C.
The contacts are made of brass with a tin finish of 15.0µin (0.38µm) thickness.
