| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

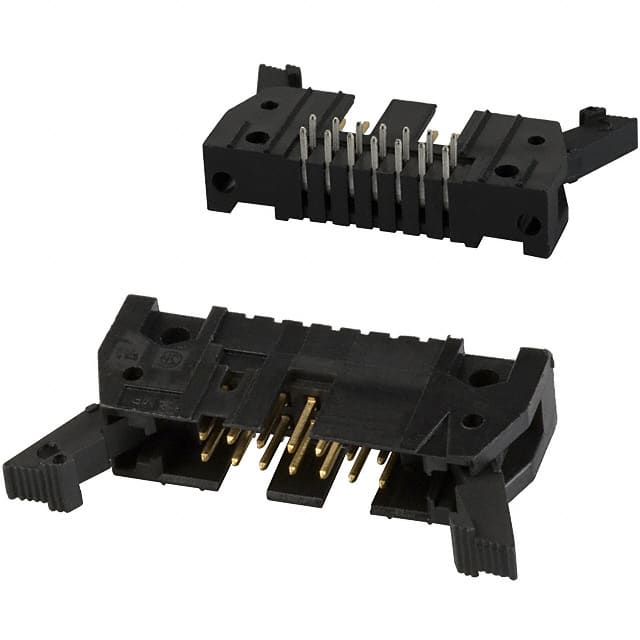

The TE Connectivity 5499913-2 is a 14-position, 2-row male pin header with a 2.54mm pitch. It features a shrouded 4-wall design with integrated latch lock/eject hooks for reliable board-to-cable/wire connections. The right angle orientation allows for space-saving horizontal connections on PCBs.
This header is rated for 1A per contact and 250VAC, suitable for low-power signal and power applications. The brass contacts with tin finish provide good conductivity and corrosion resistance. The insulation is black UL94 V-0 rated material, ensuring flammability safety.
Designed for through-hole soldering, it has a contact length of 6.10mm and an insulation height of 8.00mm. Additional features include a keying slot and mounting flange for proper alignment and secure attachment. The operating temperature range is -65°C to 105°C, covering a wide range of environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.95 | $4.95 |
| 64+ | $3.69 | $3.69 |
| 128+ | $3.51 | $3.51 |
| 512+ | $3.18 | $3.18 |
| 1,024+ | $3.03 | $3.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 14 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inch).
1A per contact.
250VAC.
Through Hole, Right Angle with solder termination.
-65°C to 105°C.
Yes, it has a shrouded 4-wall design.
