| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94 pcs
|
94 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

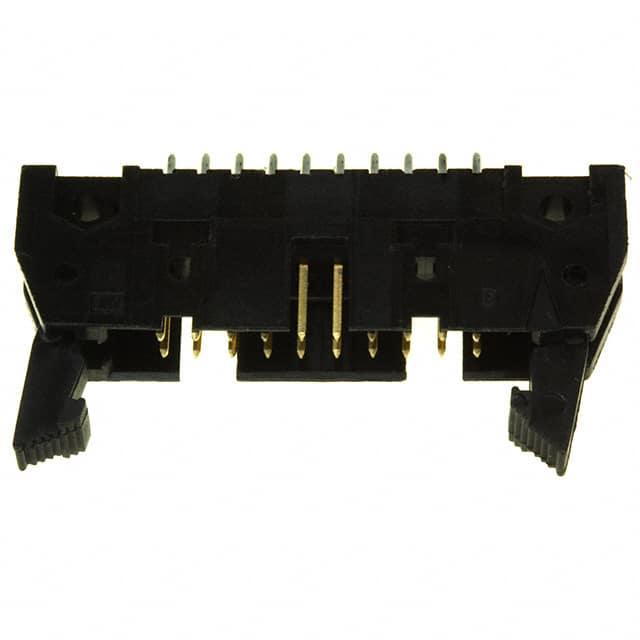

The TE Connectivity 5499910-4 is a 20-position, 2-row shrouded header connector designed for board-to-cable/wire applications. This header features male square pins with a 2.54mm (0.100") pitch and a row spacing of 2.54mm (0.100"). The connector is fully shrouded with a 4-wall design and includes latch lock/eject hooks for secure mating. It is rated for a current of 1A per contact and operates over a temperature range of -55°C to 105°C.
The header uses through hole mounting with solder termination and has a 15.0µin (0.38µm) tin contact finish. The black insulation is rated UL94 V-0 for flammability. Additional features include a keying slot and mounting flange for alignment and secure board attachment. The overall contact length is 16.23mm (0.639") with an insulation height of 13.94mm.
This connector is suitable for a wide variety of interconnect applications requiring a reliable, polarized, and robust connection. Its shrouded design protects the pins and provides guidance during mating. The latch lock feature enhances retention in vibration-prone environments. The part is lead (Pb)-free and compliant with RoHS3, REACH, and MSL Level 1 (unlimited) as per unverified data.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.50 | $6.50 |
| 48+ | $4.94 | $4.94 |
| 144+ | $4.57 | $4.57 |
| 528+ | $4.17 | $4.17 |
| 1,008+ | $3.99 | $3.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TE Connectivity 5499910-4 has 20 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100"). Row spacing is also 2.54mm.
The current rating is 1A per contact.
Through hole mounting with solder termination.
RoHS3 compliance is indicated but unverified.
