| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
648 pcs
|
648 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
282 pcs
|
282 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

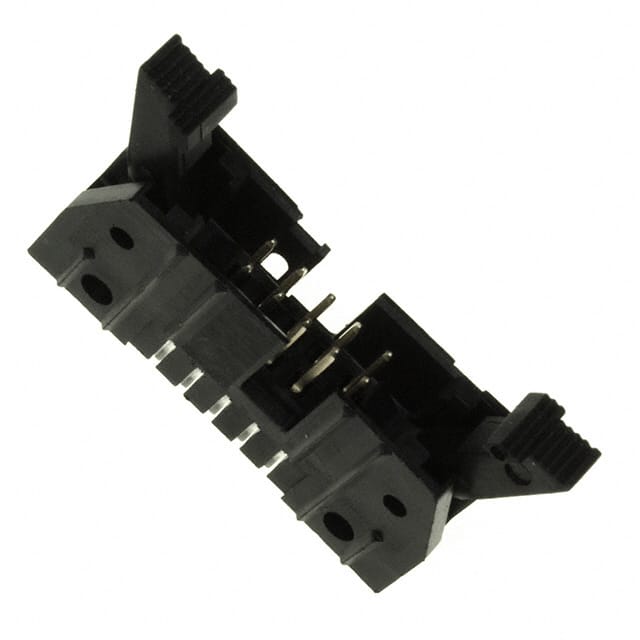

The TE Connectivity 5499910-1 is a 10 position, 2 row, 2.54mm pitch shrouded header designed for board to cable/wire applications. It features a through hole mounting style with solder termination and a black insulator with UL94 V-0 flammability rating. The header includes a keying slot and mounting flange for secure alignment and retention.
Electrical rating is 1A with an operating temperature range of -55°C to 105°C. Contacts are male pin, square shape with tin finish (15.0µin thickness). The overall contact length is 0.639" (16.23mm) with a contact length of 0.240" (6.10mm). Insulation height is 0.549" (13.94mm).
This component is suitable for applications requiring a reliable, polarized connection with latch lock/eject hooks for secure mating. The shrouded 4-wall design provides protection for the pins and helps prevent misalignment during mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.23 | $3.23 |
| 72+ | $2.38 | $2.38 |
| 144+ | $2.27 | $2.27 |
| 504+ | $2.08 | $2.08 |
| 1,008+ | $1.98 | $1.98 |
| 5,040+ | $1.77 | $1.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions in 2 rows, all positions loaded.
2.54mm (0.100") pitch with 2.54mm row spacing.
1A.
Through hole with solder termination.
-55°C to 105°C.
Tin, 15.0µin (0.38µm) thickness.
Yes, shrouded with 4 walls and includes latch lock/eject hooks.
