Mfr Part #:

5499786-3

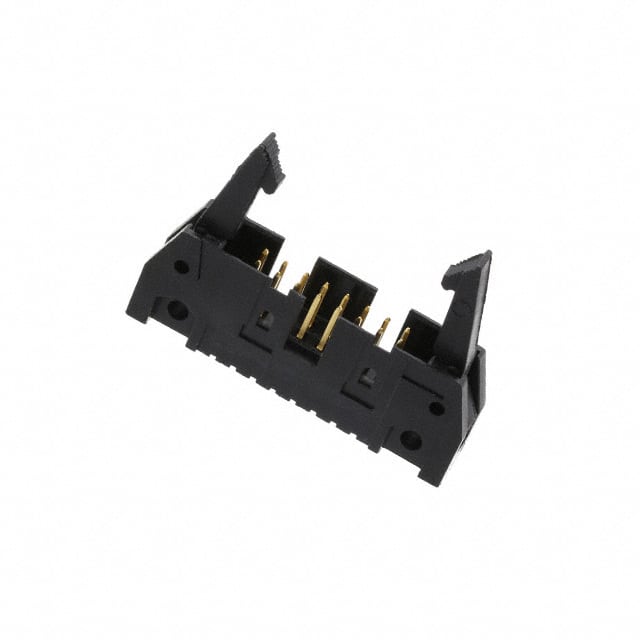

This TE Connectivity header connector features 16 positions in a 2-row, right-angle through-hole configuration with a 2.54mm pitch. It is shrouded with latch lock/eject hooks for secure mating.

✓ Total Stock: 10 pcs

$ Price Range: $3.32 - $5.67

5499786-3 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	10 pcs On Request	10 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5499786-3 Description

Short technical summary and product information.

The TE Connectivity 5499786-3 is a 16-position male pin header designed for board-to-cable/wire applications. It features a 2-row, right-angle through-hole mounting style with a 2.54mm (0.100") pitch and row spacing. The connector is fully shrouded with a 4-wall design and includes latch lock/eject hooks for reliable mating and unmating. A keying slot and mounting flange provide polarization and secure attachment to the PCB.

Electrical ratings include 1A per contact current capacity and 250VAC voltage rating. The contacts are made of brass with a tin finish (15µin / 0.38µm thickness). The insulator is black thermoplastic with a UL94 V-0 flammability rating. Operating temperature range is -65°C to 105°C.

This header is suitable for industrial control, telecommunications, and consumer electronics where a robust, polarized connection is required. The right-angle orientation allows for low-profile cable routing. All 16 positions are loaded, and the termination is solder.

5499786-3 Quick Information

Product Type: Header Connector

Canonical Name: 16 Position Header Connector, 0.100" Pitch, Through Hole, Right Angle, Shrouded

Subcategory: Shrouded Header

5499786-3 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5499786-3 Estimated Pricing

Qty	Low	High
1+	$5.67	$5.67
10+	$5.46	$5.46
56+	$4.29	$4.29
112+	$4.08	$4.08
504+	$3.67	$3.67
1,008+	$3.41	$3.41
2,520+	$3.32	$3.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

5499786-3 Features

16 positions in 2 rows with 2.54mm pitch.
Right-angle through-hole mounting for space-saving designs.
Shrouded 4-wall design with latch lock for secure connection.
Tin-plated brass contacts rated for 1A per contact.
Operating temperature range from -65°C to 105°C.

5499786-3 Applications

Ideal for board-to-cable/wire connections.
Used in industrial control and automation systems.
Suitable for telecommunications equipment.
Common in consumer electronics requiring reliable interconnects.

5499786-3 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

16 positions.

What is the pitch?

2.54mm (0.100").

What is the current rating?

1A per contact.

What is the voltage rating?

250VAC.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-65°C to 105°C.

What is the contact finish?

Tin, 15µin (0.38µm).

Category	Headers, Male Pins
Manufacturer Name	TE Connectivity
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	15.0µin (0.38µm)
Contact Length	6.10mm (0.240")
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1A per Contact
Fastening Type	Latch Lock/Eject Hooks, Long
Features	Keying Slot, Mounting Flange
Insulation Color	Black
Insulation Height	8.00mm (0.315")
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-65°C ~ 105°C
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	Yes
Termination	Solder
Voltage Rating	250VAC
