| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
64 pcs
|
64 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

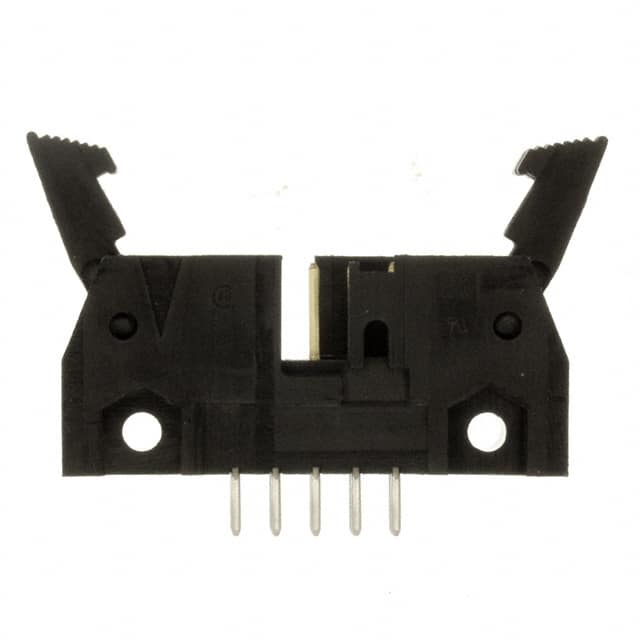

The TE Connectivity 5499374-1 is a 10-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and row spacing, with all positions loaded. The header has a 4-wall shrouded design with short latch lock/eject hooks for secure mating.
The connector uses male square pins with a tin finish (30.0µin thickness) and is rated for 1A per contact and 250VAC. It is designed for through-hole mounting with solder termination, making it suitable for standard PCB assembly processes.
The insulator is black, rated UL94 V-0 for flammability, and includes a keying slot and mounting flange for alignment and secure attachment. The operating temperature range is -65°C to 105°C, supporting a wide range of environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.95 | $4.95 |
| 10+ | $4.91 | $4.91 |
| 25+ | $4.76 | $4.76 |
| 50+ | $3.66 | $3.66 |
| 72+ | $3.48 | $3.48 |
| 504+ | $3.18 | $3.18 |
| 1,008+ | $3.04 | $3.04 |
| 2,520+ | $2.95 | $2.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 5499374-1 has 10 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100"), with the same row spacing.
The current rating is 1A per contact.
The voltage rating is 250VAC.
The mounting type is through hole with solder termination.
The operating temperature range is -65°C to 105°C.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
