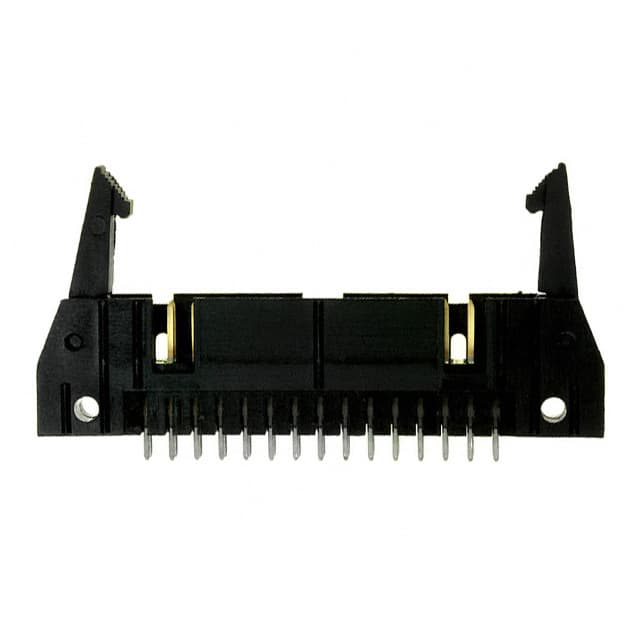

5499206-7 30 position shrouded header with male pins, 2.54mm pitch, through hole termination. Rated for 1A and 250VAC.
Mfr Part #:

5499206-7

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
30 position shrouded header with male pins, 2.54mm pitch, through hole termination. Rated for 1A and 250VAC.
✓ Total Stock: 168 pcs
$ Price Range: $6.97 - $11.31

5499206-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
168 pcs
On Request
168 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5499206-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

5499206-7 Description

Short technical summary and product information.

The TE Connectivity 5499206-7 is a 30-position shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100 inch) pitch and dual row configuration, with all positions loaded. The header uses square male pin contacts with a tin finish (30 microinch) and offers an overall contact length of 16.23mm (0.639 inches) with a 6.10mm contact length.



Insulation height is 13.94mm (0.549 inches), color black, with a UL94 V-0 flammability rating. The connector includes a latch lock/eject hooks fastening type for secure mating, keying slot and mounting flange for alignment. It is through-hole soldered to the PCB.



Rated for 1A current and 250VAC voltage, it operates across -65°C to 105°C. The part is listed with RoHS3 and REACH compliance (unverified) and an MSL of 1.

5499206-7 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 5499206-7 Header, Male Pins, 30 Position, 2.54mm Pitch, Through Hole, Shrouded
Subcategory: Shrouded Header

5499206-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5499206-7 Estimated Pricing

Qty Low High
1+ $11.31 $11.31
10+ $10.18 $10.18
30+ $9.59 $9.59
60+ $9.35 $9.35
120+ $9.10 $9.10
270+ $8.12 $8.12
510+ $7.62 $7.62
1,020+ $6.97 $6.97

Estimated market price range - modelled values for guidance only, not live distributor offers.

5499206-7 Features

  • 30 position dual row shrouded header.
  • 2.54mm pitch through hole mounting.
  • Tin plated square male pin contacts.
  • Latch lock and eject hooks fastening.
  • UL94 V-0 rated black insulation.

5499206-7 Applications

  • Board to cable wiring applications.
  • Industrial control and automation systems.
  • Internal power and signal connections.
  • Equipment requiring secure latch locking.

5499206-7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the TE Connectivity 5499206-7 header?

The pitch is 2.54mm (0.100 inches).

How many positions does the 5499206-7 header have?

It has 30 positions, all loaded, arranged in 2 rows.

What is the current rating of this connector?

It is rated for 1A.

What is the voltage rating of the 5499206-7?

It is rated for 250VAC.

What mounting type does the 5499206-7 use?

It uses through hole mounting with solder termination.

Is the 5499206-7 header shrouded?

Yes, it is a shrouded header with 4-wall shrouding.

What is the operating temperature range?

It operates from -65°C to 105°C.
