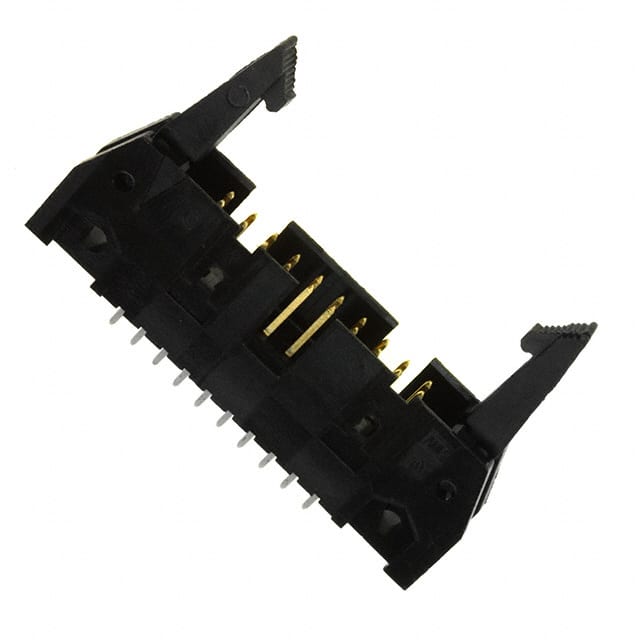

This is a 20-position, 2-row male pin header from TE Connectivity, part of their universal header series. It features a 2.54mm pitch and row spacing, with a shrouded 4-wall design for mating alignment and protection. The header is through-hole mounted and terminated via solder.
Electrical ratings include 1A current and 250VAC voltage. Operating temperature range is -65°C to 105°C. The insulation is black UL94 V-0 rated material. Contacts are square male pins with tin finish (30µin). The header includes a keying slot and mounting flange for secure board attachment.
The fastening type is latch lock/eject hooks (long), suitable for board-to-cable/wire applications. The overall contact length is 16.23mm, with a contact length of 6.10mm and insulation height of 13.94mm. The part is RoHS3 compliant (unverified) and MSL level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.80 | $7.80 |
| 36+ | $6.05 | $6.05 |
| 108+ | $5.60 | $5.60 |
| 504+ | $5.02 | $5.02 |
| 1,008+ | $4.78 | $4.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
2.54mm (0.100").
1A per contact.
250VAC.
Through hole.
-65°C to 105°C.
Tin, 30µin (0.76µm).
