| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

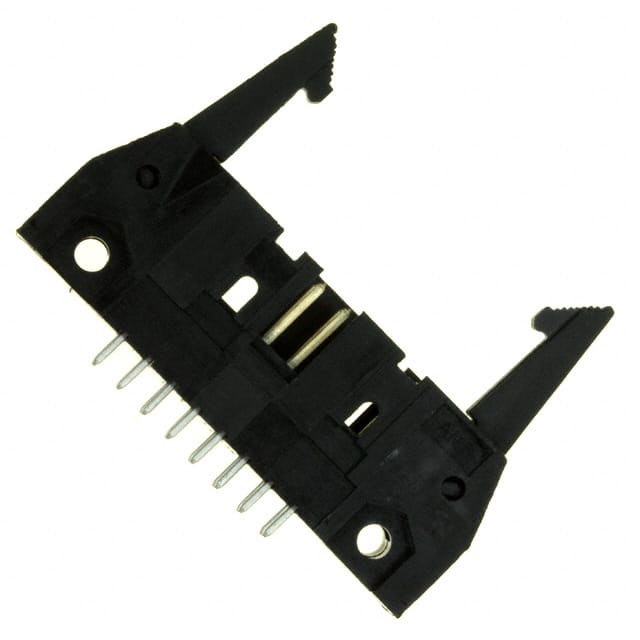

The TE Connectivity 5499206-3 is a 16-position, 2-row shrouded header designed for board-to-cable/wire interconnects. It features a 2.54mm pitch and row spacing, making it compatible with standard ribbon cable connectors. The header uses through-hole mounting with solder termination and has square male pins with a tin contact finish.
This connector includes a 4-wall shroud for pin protection and features a latch lock/eject hook system for secure mating. It also includes a keying slot and mounting flange for alignment and board retention. The insulation is black UL94 V-0 rated material.
Rated for 1A current and 250VAC, the 5499206-3 operates over a temperature range of -65°C to 105°C. It is suitable for a variety of industrial and commercial applications requiring a reliable, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.61 | $6.61 |
| 10+ | $5.98 | $5.98 |
| 25+ | $5.65 | $5.65 |
| 42+ | $5.51 | $5.51 |
| 84+ | $5.24 | $5.24 |
| 252+ | $4.69 | $4.69 |
| 504+ | $4.41 | $4.41 |
| 1,008+ | $3.91 | $3.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm (0.100").
It has 16 positions arranged in 2 rows.
The current rating is 1A.
The voltage rating is 250VAC.
It is a through-hole mounting connector with solder termination.
The operating temperature range is -65°C to 105°C.
The contact finish is tin with a thickness of 30.0µin (0.76µm).
