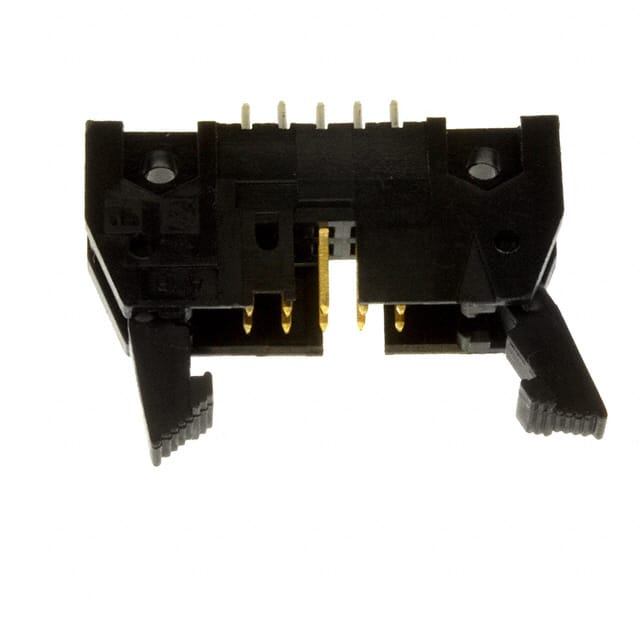

5499160-1 TE Connectivity AMP-Latch 10-position shrouded header with male pins, 2.54mm pitch, through hole mounting, and gold mating contact finish.
Mfr Part #:

5499160-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity AMP-Latch 10-position shrouded header with male pins, 2.54mm pitch, through hole mounting, and gold mating contact finish.
✓ Total Stock: 6,696 pcs
$ Price Range: $2.33 - $3.80

5499160-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
6,696 pcs
On Request
6696 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5499160-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish - Mating
Contact Finish Thickness
Contact Finish Thickness - Mating
Contact Length
Contact Length - Mating
Contact Length - Post
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Termination
View Similar Products (0)

5499160-1 Description

Short technical summary and product information.

The TE Connectivity AMP-Latch 5499160-1 is a 10-position, 2-row shrouded header designed for board-to-cable/wire applications. It features male pin contacts with a square contact shape and a mating contact length of 6.10mm. The header is fully loaded with all positions populated and uses a 2.54mm pitch with matching 2.54mm row spacing.



This through-hole component terminates via solder and includes a latch lock/eject hook fastening system for secure mating. The insulation is black with a height of 13.94mm, and the housing includes a keying slot and mounting flange for alignment and mechanical stability. The operating temperature range is -55°C to 105°C, and the material flammability rating is UL94 V-0.



The mating contact finish is gold or gold-palladium with a thickness of 0.76µm, while the post contact finish is tin. The header is rated for 1A current and is part of the AMP-Latch series from TE Connectivity.

5499160-1 Quick Information

Product Type: Header, Male Pins
Series: 5499160
Canonical Name: TE Connectivity AMP-Latch 10 Position Shrouded Header, Male Pins, Through Hole, 2.54mm Pitch
Subcategory: Header, Male Pins

5499160-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

5499160-1 Estimated Pricing

Qty Low High
1+ $3.80 $3.80
72+ $2.81 $2.81
144+ $2.67 $2.67
504+ $2.45 $2.45
1,008+ $2.33 $2.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

5499160-1 Features

  • 10 positions in 2 rows.
  • 2.54mm pitch and row spacing.
  • Shrouded with latch lock/eject hooks.
  • Gold or gold-palladium mating finish.
  • Rated for 1A current.

5499160-1 Applications

  • Board-to-cable/wire interconnection.
  • Industrial control and automation systems.
  • Data communication equipment.
  • Consumer electronics wiring.

5499160-1 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 5499160-1 have?

10 positions, all loaded, in 2 rows.

What is the pitch of this header?

2.54mm (0.100") pitch with matching 2.54mm row spacing.

What is the current rating?

1A.

What mounting type does it use?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 105°C.
