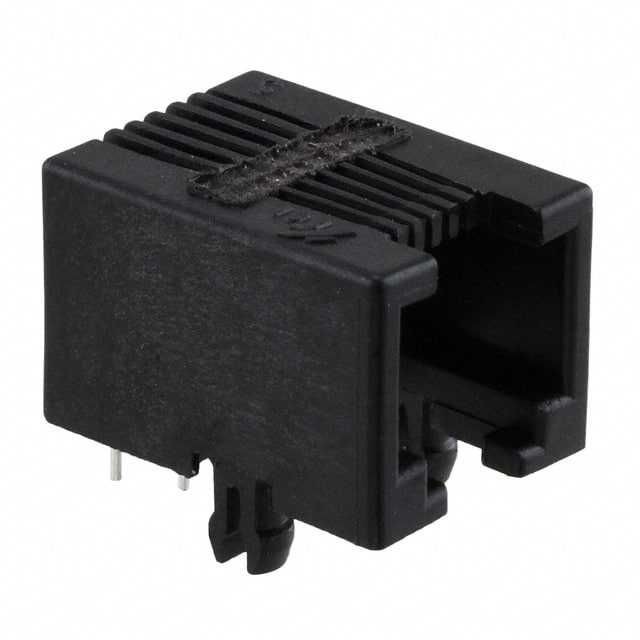

54601-906WPLF Amphenol ICC 54601-906WPLF is a 6P6C modular jack with right angle orientation, through hole mounting, and unshielded design. It features gold plated contacts and a board lock for secure attachment.
Mfr Part #:

54601-906WPLF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 54601-906WPLF is a 6P6C modular jack with right angle orientation, through hole mounting, and unshielded design. It features gold plated contacts and a board lock for secure attachment.
✓ Total Stock: 800 pcs

54601-906WPLF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

54601-906WPLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

54601-906WPLF Description

Short technical summary and product information.

The 54601-906WPLF is a modular connector jack from Amphenol ICC, designed for 6-position 6-contact (6P6C) configurations commonly used in RJ11, RJ12, RJ14, and RJ25 applications. The connector features a right-angle (90°) orientation with through hole solder termination, making it suitable for PCB mounting where space is limited.



The unshielded design and down tab direction are typical for voice and low-speed data applications. The contacts are made of copper alloy with gold finish, ensuring reliable connections. The product includes a board lock feature for secure PCB retention. It is rated for Category 3 performance, suitable for voice and 10Base-T networks.



The connector has a single port and single row design. No LED indicator is included. The mounting type is through hole, and the termination is solder. The part is RoHS3 compliant and REACH unaffected (unverified). The moisture sensitivity level is 1 (unlimited). This product is suitable for telecommunication equipment, networking devices, and other applications requiring a compact RJ11/RJ12 jack.

54601-906WPLF Quick Information

Product Type: Modular Connector Jack
Canonical Name: Modular Jack 6P6C, Right Angle, Through Hole, Unshielded, Cat3
Subcategory: RJ11/RJ12/RJ14/RJ25 Jacks

54601-906WPLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

54601-906WPLF Features

  • 6P6C modular jack for RJ11/RJ12 applications.
  • Right angle orientation for space-saving PCB layout.
  • Through hole mounting with solder termination.
  • Unshielded design with gold plated contacts.
  • Board lock feature for secure PCB retention.

54601-906WPLF Applications

  • Used in telecommunication equipment and modems.
  • Suitable for voice and data networking devices.
  • Ideal for compact PCB designs requiring right angle connections.
  • Common in RJ11/RJ12 telephone line interfaces.
  • Applicable in Category 3 compliant network systems.

54601-906WPLF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions and contacts?

6 positions, 6 contacts (6p6c).

What is the mounting type?

Through hole.

What is the orientation?

90° Angle (Right).

Is the connector shielded?

No, it is unshielded.

What is the contact finish?

Gold.

Does it include a board lock?

Yes, it features a board lock.

What is the performance rating?

Cat3.
