Mfr Part #:

5452033

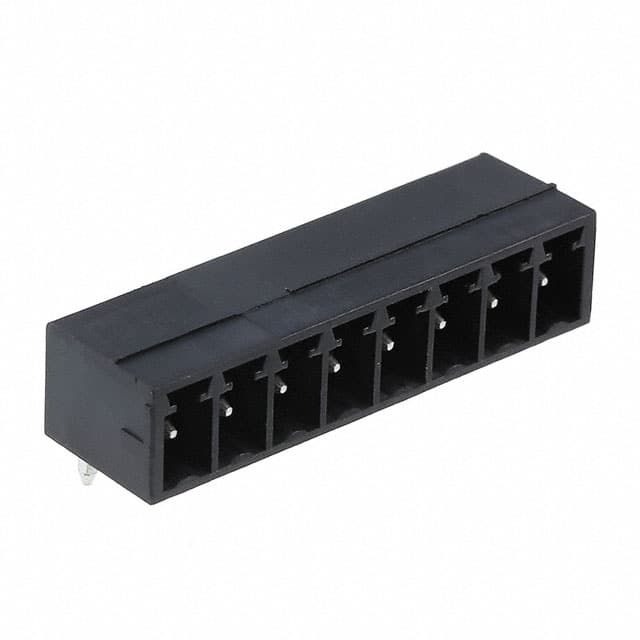

This is a 8-position right angle shrouded header from Phoenix Contact with 3.81mm pitch. It is rated for 8A and 300V with tin contacts, through hole mounting.

✓ Total Stock: 2,252 pcs

$ Price Range: $1.34 - $1.65

5452033 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	1,126 pcs On Request	1126 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	1,126 pcs On Request	1126 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5452033 Description

Short technical summary and product information.

Phoenix Contact 5452033 (BCH-381H- 8 BK) is a printed-circuit board connector header. It features 8 positions in a single level with a 3.81mm pitch, right angle orientation, and through hole mounting. The header is shrouded on 4 sides, providing protection and alignment for mating connectors.

Electrical specifications: nominal current 8A, nominal voltage 300V. UL and cUL recognized with ratings of 8A/250V and 8A/300V. The header is designed for reliable signal and power transmission in industrial control systems.

Mechanical details: through hole solder termination, black color, tin contact finish. Weight per piece is 2.0g. Packing unit is 1 piece, minimum order quantity 100 pieces. Country of origin is China.

Compliance and approvals: RoHS3 compliant, MSL 1, REACH unaffected. Safety approvals include UL Recognized, cUL Recognized, VDE, and IECEE CB Scheme. Custom tariff number 85366990.

5452033 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)

Series: BCH-381H

Canonical Name: Phoenix Contact BCH-381H- 8 BK - 8 Position 3.81mm Pitch Right Angle Header

Subcategory: Shrouded Header

5452033 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5452033 Estimated Pricing

Qty	Low	High
1+	$1.65	$1.65
10+	$1.34	$1.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

5452033 Features

8 positions in a single level with 3.81mm pitch.
Right angle orientation with through hole mounting.
Rated for 8A current and 300V voltage.
Tin contact finish for reliable connections.
UL and cUL recognized for safety.

5452033 Applications

Used in industrial control systems and PLCs.
Suitable for PCB connection in power distribution.
Ideal for signal and power transmission in automation.
Common in building automation and instrumentation.

5452033 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 5452033 header have?

It has 8 positions in a single level.

What is the pitch of this header?

The pitch is 3.81mm (0.150 inches).

What is the current rating of the 5452033?

The nominal current rating is 8A. UL and cUL recognized ratings are also 8A.

What is the voltage rating of the 5452033?

The nominal voltage rating is 300V. UL and cUL recognized ratings are 250V (B D) and 300V (D).

What is the mounting type for this header?

Through hole mounting.

What is the orientation of the header?

Right angle (90°).

What safety approvals does the 5452033 have?

UL Recognized, cUL Recognized, VDE, and IECEE CB Scheme.

Category	Headers, Plugs and Sockets
Manufacturer Name	Phoenix Contact
Color	Black
Contact Mating Finish	Tin
Country of Origin	China
Current	8 A
Header Orientation	90°, Right Angle
Lead Spacing	3.81 mm
Lead Style	Solder
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	8
Pitch	3.81mm (0.150")
Positions Per Level	8
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage	300 V
