5451381

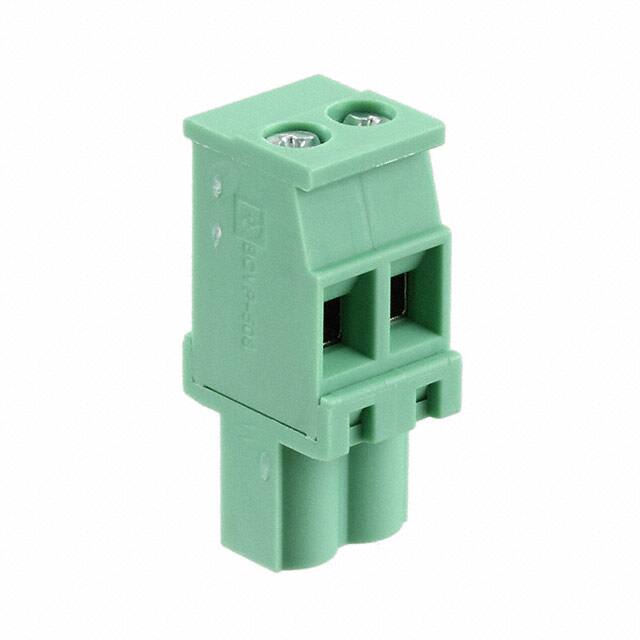

The Phoenix Contact 5451381 is a printed-circuit board connector from the BCVP-508W series, specifically a plug with female sockets designed for free hanging (in-line) installation. It features 2 positions at a 5.08mm pitch, making it suitable for compact wiring applications. The screw termination accommodates solid or stranded conductors from 24 AWG to 12 AWG (0.2 mm² to 2.5 mm²) with a stripping length of 7 mm and a tightening torque of 0.5-0.6 Nm.

Electrically, the plug is rated for a nominal current of 12 A and has multiple rated voltage ratings depending on the overvoltage category: 320 V (III/2), 250 V (III/3), and 630 V (II/2). The contact mating finish is tin, ensuring reliable conductivity. The housing is made of green polyamide (PA) with a flammability class of UL 94 V0, providing good thermal and mechanical resistance.

This plug is part of the BCVP-W family and comes with a packing unit of 1 piece, with a minimum order quantity of 100 pieces. It is manufactured in Germany and weighs approximately 4.4 grams. The screw thread is M3, and the insulating material group is I.
