| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,017 pcs
|
7017 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Color | |
| Conductor Cross Section (Minimum/Maximum @ Flexible) | |
| Contact Mating Finish | |
| Current | |
| Dimension a | |
| Flammability Rating | |
| Height | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Maximum Load Current | |
| Mounting Type | |
| Nominal Current | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Rated Surge Voltage (III/3, III/2, II/2) | |
| Screw Thread | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque (Minimum/Maximum) | |
| Type | |
| Voltage | |
| Voltage Rating (Unspecified condition) | |
| Wire Gauge or Range | |
| conductor_cross_section (Minimum/Maximum @ solid) | |
| voltage_rating (Nominal @ II/2) | |
| voltage_rating (Nominal @ III/2) | |
| voltage_rating (Nominal @ III/3) |

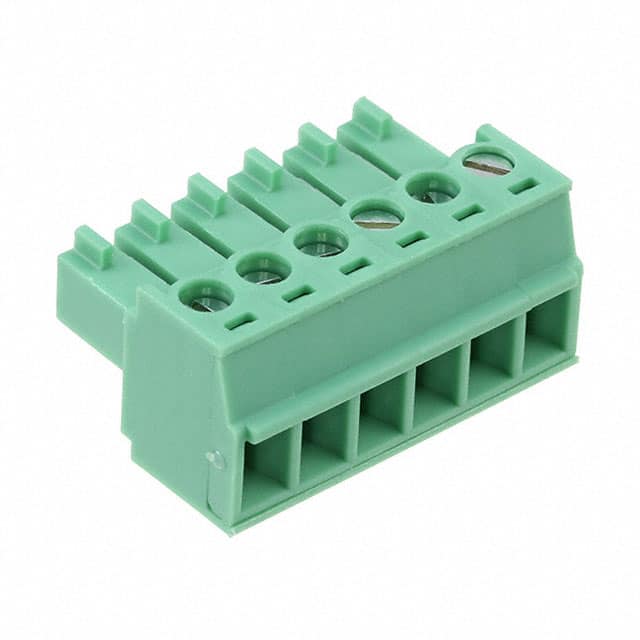

The Phoenix Contact BCP-381-6 GN (order number 5447900) is a 6-position printed-circuit board plug with a 3.81 mm pitch. It uses a screw termination method for reliable wire connections. The housing is made of pastel green PA (polyamide) with a UL 94 V0 flammability rating, and the contact surface is tin. Rated for 8 A nominal current, the plug supports rated voltages of 160 V (insulation group III/2 and III/3) and 320 V (II/2), with a rated surge voltage of 2.5 kV. Suitable conductor cross sections are 0.2 to 1.5 mm² for solid and flexible wires (24-16 AWG). The stripping length is 7 mm, and the M2 screws require a tightening torque of 0.22 to 0.25 Nm. The plug is designed for free hanging (in-line) mounting. Dimensions include a height of 11.1 mm and a length of 19.05 mm for the 6-position variant.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.40 | $3.40 |
| 10+ | $2.76 | $2.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
3.81 mm.
8 A nominal current.
160 V rated voltage for insulation groups III/2 and III/3, and 320 V for II/2.
Free hanging (in-line).
0.2-1.5 mm² solid or flexible, equivalent to 24-16 AWG.
0.22 Nm to 0.25 Nm.
