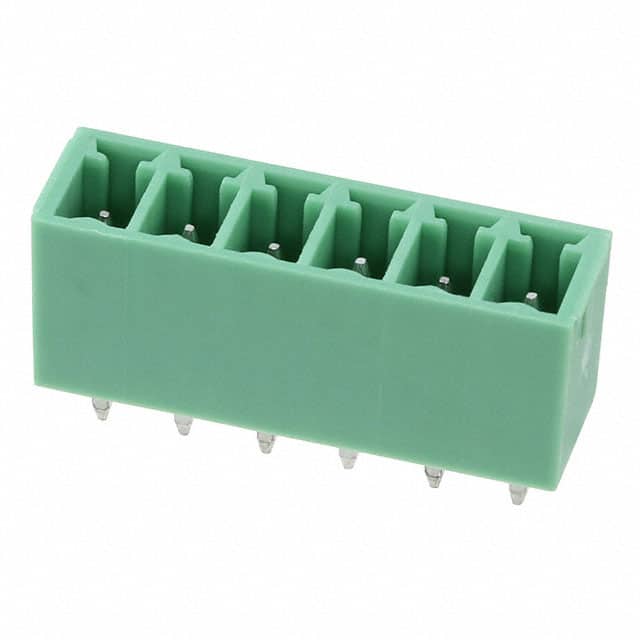

5444686 Terminal block header, 6 positions, 3.81mm pitch, vertical, through hole, rated 8A and 300V. Green color, tin contact finish.
Mfr Part #:

5444686

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block header, 6 positions, 3.81mm pitch, vertical, through hole, rated 8A and 300V. Green color, tin contact finish.
✓ Total Stock: 112 pcs
$ Price Range: $0.97 - $1.19

5444686 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
112 pcs
On Request
112 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5444686 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Halogen Free
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

5444686 Description

Short technical summary and product information.

This Phoenix Contact 5444686 is a 6-position terminal block header designed for printed circuit board applications. The header features male pins in a shrouded (4 side) configuration, with a single level and 3.81mm pitch. It mounts vertically using through hole solder termination. The housing is made of green PA (polyamide) insulating material with a flammability rating of V0 according to UL 94. The contact mating finish is tin.



Electrical ratings include a nominal current of 8 A and voltage ratings up to 320 V (II/2) or 160 V (III/2 and III/3). The product is UL recognized, cUL recognized, VDE approved, and IECEE CB Scheme certified. Dimensions: length 7.4 mm, solder pin length 3.4 mm, pin dimensions 0.8 x 0.8 mm, recommended hole diameter 1.2 mm. Dimension a (distance between first and last pin) is 19.05 mm.



Packaging is individually per piece (1 pc), with a minimum order quantity of 100 pieces. Weight per piece excluding packing is 1.4 g. The header is suitable for use in industrial control, power distribution, and automation systems requiring reliable wire-to-board connections.

5444686 Quick Information

Product Type: Terminal Block Header
Series: BCH-V
Canonical Name: Phoenix Contact 5444686 - Header, Male Pins, Shrouded, 6 Position, 3.81mm, Vertical, Through Hole, Green
Subcategory: Shrouded Header

5444686 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

5444686 Estimated Pricing

Qty Low High
1+ $1.19 $1.19
10+ $0.97 $0.97

Estimated market price range - modelled values for guidance only, not live distributor offers.

5444686 Features

  • 6-position shrouded header with 3.81mm pitch.
  • Vertical through-hole mounting for PCB.
  • Rated for 8A nominal current and 320V.
  • Green PA insulating material with V0 rating.
  • UL and VDE recognized safety approvals.

5444686 Applications

  • Ideal for industrial control panel wiring.
  • Used in power supply distribution boards.
  • Suitable for PLC and I/O module connections.
  • Common in building automation systems.

5444686 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

6 positions.

What is the pitch of this header?

3.81mm (0.150 inches).

What is the nominal current rating?

8 A.

What is the voltage rating?

Rated voltage up to 320 V (II/2) or 160 V (III/2 and III/3).

What is the mounting type?

Through hole, solder termination.

What color is the housing?

Green.
