| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Country of Origin | |
| Current | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Wire Gauge or Range |

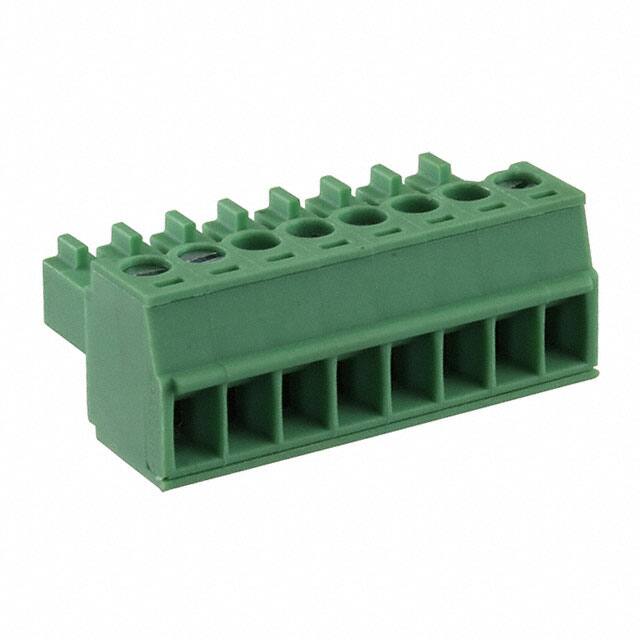

The Phoenix Contact 5441252 (BCP-350-8 GN) is an 8-position plug component for printed-circuit board connectors. It features a screw connection with tension sleeve and a 3.5mm pitch. The plug is rated for a nominal current of 8A and a rated voltage of 160V (III/2) or 320V (II/2), with a rated surge voltage of 2.5kV. It accepts solid or flexible conductors from 0.2 to 1.5mm² (24-16 AWG) and requires a stripping length of 7mm. The screw thread is M2 with a tightening torque of 0.22-0.25 Nm.
Designed for free hanging (in-line) mounting, the plug has a 180° wire entry. The insulating material is polyamide (PA) with a UL94 V0 flammability rating, and the contact mating finish is tin. The housing color is green. Dimensions include a height of 11.1mm and a dimension a of 24.5mm. The product weighs 5.8g and is manufactured in China.
This plug is part of the BCP series and is suitable for industrial control, lighting, and power distribution applications where reliable screw termination is required. The packing unit is 1 piece, with a minimum order quantity of 100 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.27 | $5.27 |
| 10+ | $4.28 | $4.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This plug has 8 positions.
The pitch is 3.5 mm.
The nominal current rating is 8 A, with a maximum load current of 8 A with 1.5 mm² conductor.
The rated voltage is 160 V for III/2 and III/3, and 320 V for II/2.
The mounting type is free hanging (in-line).
The termination style is screw with tension sleeve.
Solid and flexible conductors from 0.2 to 1.5 mm² (24-16 AWG) are supported.
