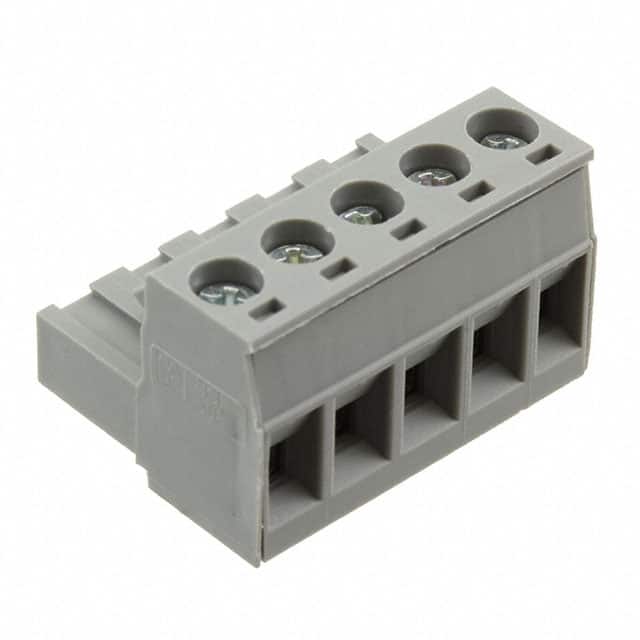

5435750 Phoenix Contact BCP-508-5 GY plug terminal block with 5 positions and 5.08mm pitch. Screw connection termination in signal grey housing.
Mfr Part #:

5435750

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact BCP-508-5 GY plug terminal block with 5 positions and 5.08mm pitch. Screw connection termination in signal grey housing.
✓ Total Stock: 32 pcs
$ Price Range: $2.06 - $2.53

5435750 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
32 pcs
On Request
32 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5435750 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Rated Current
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

5435750 Description

Short technical summary and product information.

The Phoenix Contact 5435750 is a plug component from the BCP-508 series, designed for printed-circuit board applications. It features 5 positions with a 5.08mm pitch, making it suitable for power and signal distribution in industrial control systems and building automation.



Electrical specifications include a nominal current rating of 12A and rated voltages up to 320V (III/2) and 630V (II/2). The plug accepts solid or flexible conductors from 0.2 to 2.5 mm², with a stripping length of 7 mm and a tightening torque range of 0.4 to 0.5 Nm. The screw termination ensures reliable and secure connections.



The housing is made of polyamide (PA) with a UL 94 V-0 flammability rating, and the contact mating finish is tin. The plug includes retention latches on the non-wire side for secure mating with headers. Free hanging (in-line) mounting allows flexible installation.

5435750 Quick Information

Product Type: Plug Connector
Series: BCP-508
Canonical Name: BCP-508-5 GY 5 Position 5.08mm Pitch Screw Terminal Block Plug
Subcategory: Screw Terminal Block Plug

5435750 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

5435750 Estimated Pricing

Qty Low High
1+ $2.53 $2.53
10+ $2.06 $2.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

5435750 Features

  • 5 position plug with 5.08mm pitch
  • Screw termination for solid and flexible wires
  • Rated 12A current and 320V voltage
  • Signal grey PA housing with UL 94 V-0 rating
  • Free hanging in-line mounting style

5435750 Applications

  • Ideal for industrial control panel wiring
  • Used in building automation and HVAC systems
  • Suitable for power distribution in junction boxes
  • Designed for PCB header mating with retention latches

5435750 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 5435750 have?

The 5435750 has 5 positions.

What is the pitch of this terminal block plug?

The pitch is 5.08 mm.

What is the rated current of the 5435750?

The nominal current rating is 12 A, with a maximum load current of 12 A at 2.5 mm² conductor cross section.

What voltage ratings does this plug support?

Rated voltage is 320 V for overvoltage category III/2 and 630 V for category II/2. Rated surge voltage is 4 kV.

What mounting type does the 5435750 use?

The mounting type is Free Hanging (In-Line).
