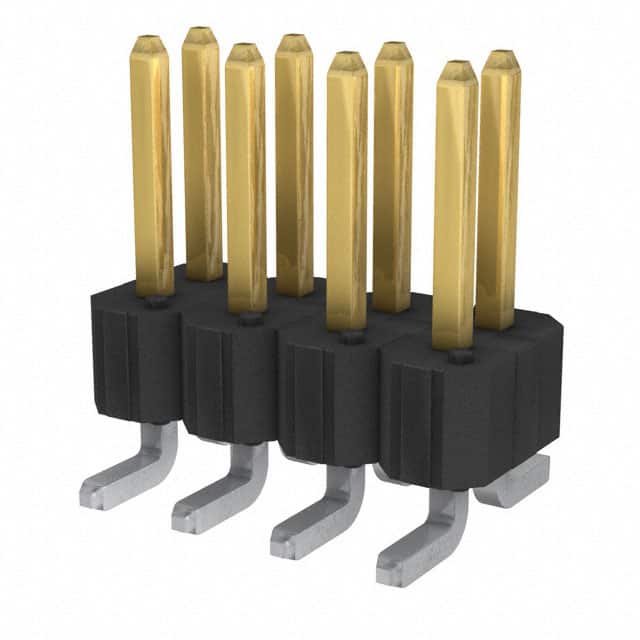

The 54202-S0804ALF is a surface mount header from Amphenol ICC, part of the 54202 series. It has 8 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing. The unshrouded design allows direct mating with female receptacles. Contacts are made of phosphor bronze with a tin finish (0.38µm), providing reliable conductivity. The insulation is black UL94 V-0 rated material. Operating temperature range is -65°C to 130°C, and the current rating is 3A per contact. The header features a pick-and-place vacuum area for automated assembly. Termination is solder, and the fastening type is push-pull. This board-to-board style connector is suitable for various applications requiring a compact 2-row SMT header.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.92 | $0.92 |
| 10+ | $0.78 | $0.78 |
| 185+ | $0.64 | $0.64 |
| 370+ | $0.61 | $0.61 |
| 555+ | $0.59 | $0.59 |
| 925+ | $0.57 | $0.57 |
| 1,295+ | $0.56 | $0.56 |
| 1,850+ | $0.54 | $0.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions, all loaded, arranged in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
3A.
Surface mount with solder termination.
-65°C to 130°C.
Phosphor bronze contacts with tin plating (0.38µm).
UL94 V-0.
